VEL05 Series

Manufacturer: XP Power

Catalog

AC/DC WALL MOUNT ADAPTER 5V 5W

Part	Weight	Weight	Input Type	Output Connector	Input Connector	Approval Agency	Current - Output (Max) [Max]	Standard Number	Form	Efficiency	Region Utilized	No Load Power Consumption	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Voltage - Output	Power (Watts)	Cord Length	Cord Length	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Output Connector [custom]	Output Connector [custom]	Output Connector [x]	Polarization	Size / Dimension	Size / Dimension	Size / Dimension

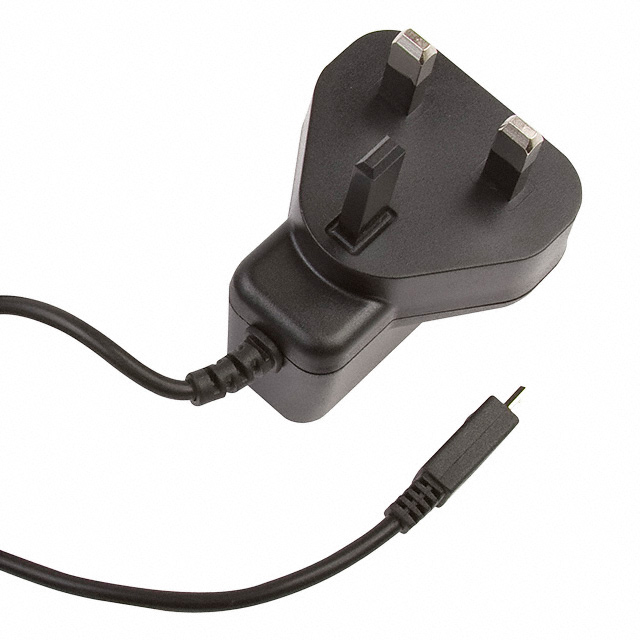

XP Power VEL05US050-UK-UB	127.01 g	0.28 lb	Fixed Blade	USB Micro	BS 1363	CB	1 A	62368-1	Wall Mount	Level VI	United Kingdom	100 mW	264 VAC	90 VAC	ITE (Commercial)	5 V	5 W	1.5 m	59 in	42.9 mm	1.95 in	1.69 in	55.1 mm	2.17 "	49.5 mm	60 °C

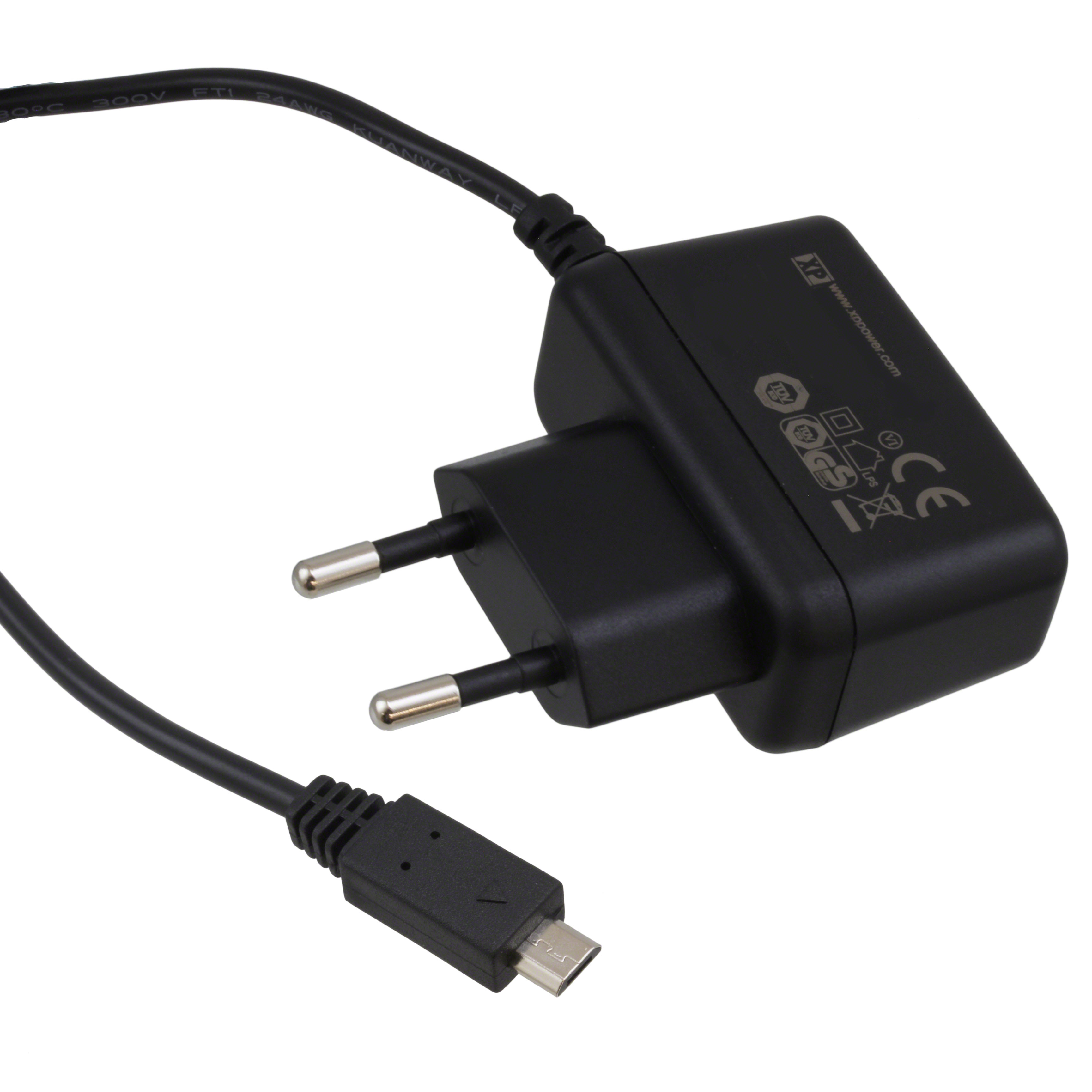

XP Power VEL05US050-EU-UB	127.01 g	0.28 lb	Fixed Blade	USB Micro	CEE 7/16	CB	1 A	62368-1	Wall Mount	Level VI	Europe	100 mW	264 VAC	90 VAC	ITE (Commercial)	5 V	5 W	1.5 m	59 in	54 mm	24.13 mm	2.13 in	55.1 mm	2.17 "	24.1 mm	60 °C

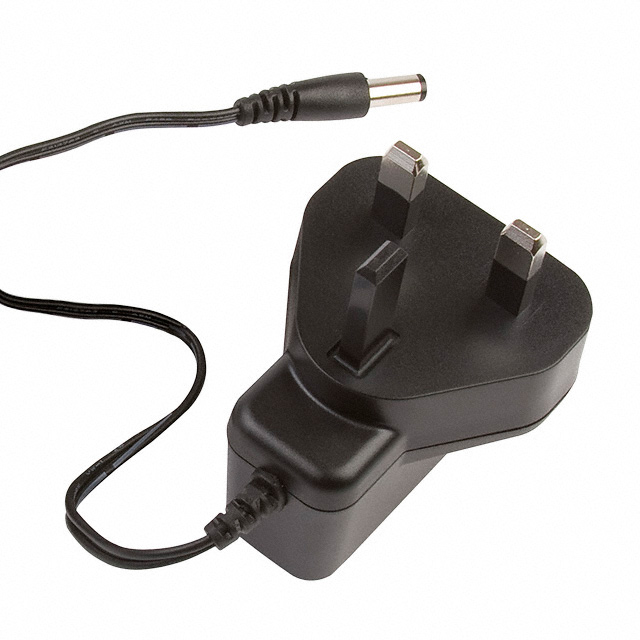

XP Power VEL05US050-UK-JA	127.01 g	0.28 lb	Fixed Blade	Barrel Plug	BS 1363	CB	1 A	62368-1	Wall Mount	Level VI	United Kingdom	100 mW	264 VAC	90 VAC	ITE (Commercial)	5 V	5 W	1.5 m	59 in	42.9 mm	1.95 in	1.69 in	55.1 mm	2.17 "	49.5 mm	60 °C	2.1 mm	5.5 mm	12 mm	Positive Center

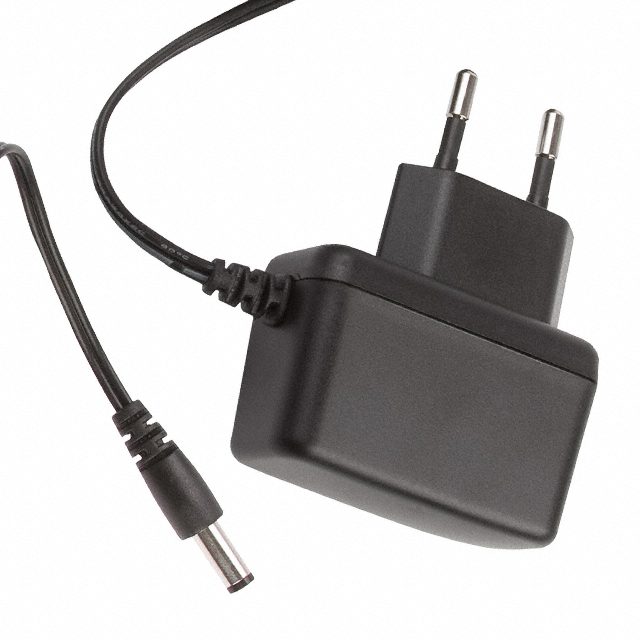

XP Power VEL05US120-EU-JA	127.01 g	0.28 lb	Fixed Blade	Barrel Plug	CEE 7/16	CB	420 mA	62368-1	Wall Mount	Level VI	Europe	100 mW	264 VAC	90 VAC	ITE (Commercial)	12 V	5 W	1.5 m	59 in	54 mm	24.13 mm	2.13 in	55.1 mm	2.17 "	24.1 mm	60 °C	2.1 mm	5.5 mm	12 mm	Positive Center

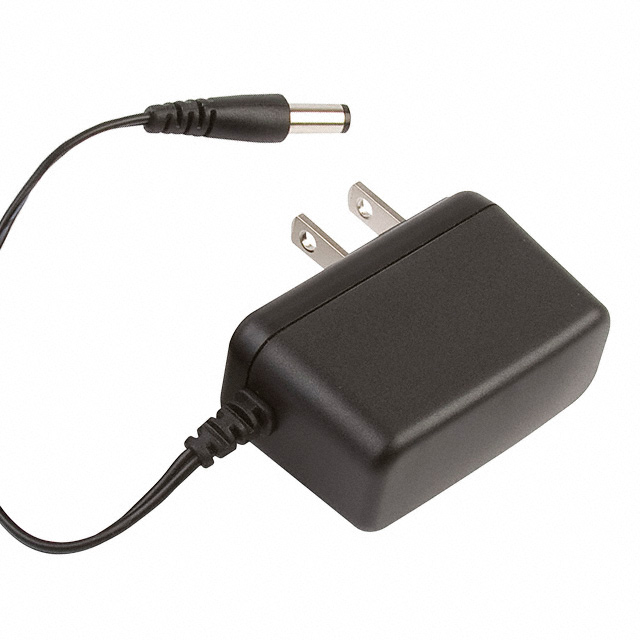

XP Power VEL05US090-US-JA	127.01 g	0.28 lb	Fixed Blade	Barrel Plug	NEMA 1-15P	CB	550 mA	62368-1	Wall Mount	Level VI	North America	100 mW	264 VAC	90 VAC	ITE (Commercial)	9 V	5 W	1.5 m	59 in							60 °C	2.1 mm	5.5 mm	12 mm	Positive Center	0.95 in 24.1 mm	1.4 in 35.5 mm	2.17 in 55.1 mm
XP Power VEL05US090-UK-JA	127.01 g	0.28 lb	Fixed Blade	Barrel Plug	BS 1363	CB	550 mA	62368-1	Wall Mount	Level VI	United Kingdom	100 mW	264 VAC	90 VAC	ITE (Commercial)	9 V	5 W	1.5 m	59 in	42.9 mm	1.95 in	1.69 in	55.1 mm	2.17 "	49.5 mm	60 °C	2.1 mm	5.5 mm	12 mm	Positive Center
XP Power VEL05US060-US-JA	127.01 g	0.28 lb	Fixed Blade	Barrel Plug	NEMA 1-15P	CB	830 mA	62368-1	Wall Mount	Level VI	North America	100 mW	264 VAC	90 VAC	ITE (Commercial)	6 V	5 W	1.5 m	59 in							60 °C	2.1 mm	5.5 mm	12 mm	Positive Center	0.95 in 24.1 mm	1.4 in 35.5 mm	2.17 in 55.1 mm

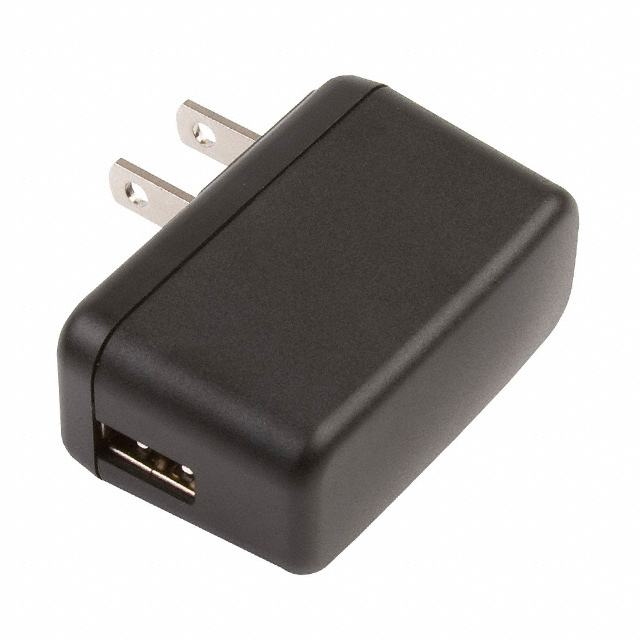

XP Power VEL05US050-US-BB	127.01 g	0.28 lb	Fixed Blade	USB A Receptacle	NEMA 1-15P	CB TUV	1 A	62368-1	Wall Mount	Level VI	North America	100 mW	264 VAC	90 VAC	ITE (Commercial)	5 V	5 W									60 °C					0.95 in 24.1 mm	1.4 in 35.5 mm	2.17 in 55.1 mm
XP Power VEL05US060-EU-JA	127.01 g	0.28 lb	Fixed Blade	Barrel Plug	CEE 7/16	CB	830 mA	62368-1	Wall Mount	Level VI	Europe	100 mW	264 VAC	90 VAC	ITE (Commercial)	6 V	5 W	1.5 m	59 in	54 mm	24.13 mm	2.13 in	55.1 mm	2.17 "	24.1 mm	60 °C	2.1 mm	5.5 mm	12 mm	Positive Center
XP Power VEL05US050-US-JA	127.01 g	0.28 lb	Fixed Blade	Barrel Plug	NEMA 1-15P	CB TUV	1 A	62368-1	Wall Mount	Level VI	North America	100 mW	264 VAC	90 VAC	ITE (Commercial)	5 V	5 W	1.5 m	59 in							60 °C	2.1 mm	5.5 mm	12 mm	Positive Center	0.95 in 24.1 mm	1.4 in 35.5 mm	2.17 in 55.1 mm
