53K403 Series
Manufacturer: Rosenberger
Beta
⌘K

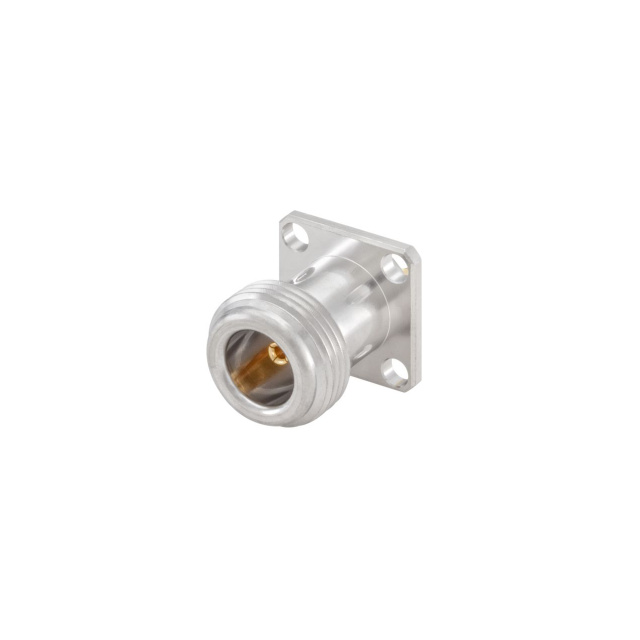

N TYPE PANEL JACK
| Part | Body Material | Dielectric Material | Mating Cycles | Voltage Rating | Body Finish | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Max [Max] | Connector Style | Housing Color | Fastening Type | Connector Type | Contact Termination | Impedance | Mounting Type | Mounting Feature | Center Contact Material | Shield Termination | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | Polytetrafluoroethylene (PTFE) | 500 | 500 V | White Bronze | Gold | 155 C | -55 C | 11 GHz | N Type | Silver | Threaded | Female Socket Jack | Solder Cup | 50 Ohms | Panel Mount | Flange | Beryllium Copper | Solder | 1 |
