RZB75 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FML 150POS 0.050
| Part | Material - Insulation | Contact Type | Contact Material | Card Type | Termination | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Card Thickness | Card Thickness | Pitch | Pitch | Gender | Features | Number of Rows [custom] | Mounting Type | Read Out |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

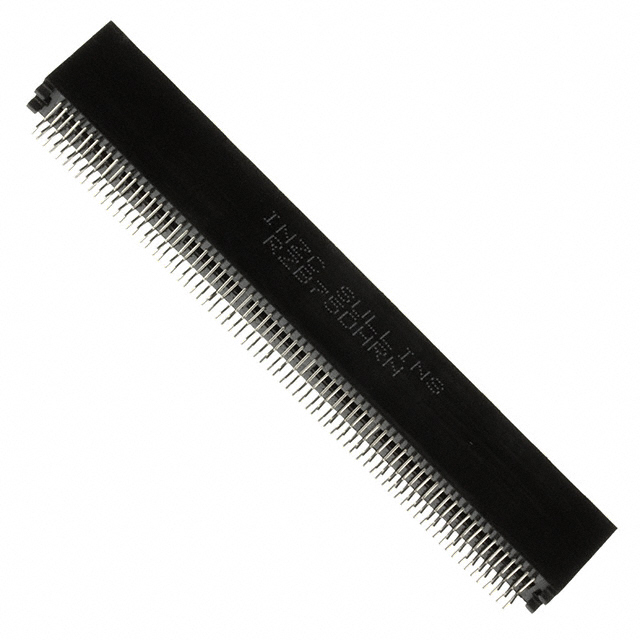

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Hairpin Bellows | Phosphor Bronze | Non Specified - Dual Edge | Solder | 75 | 0.25 Ám | 10 Áin | Black | Gold | -65 ░C | 125 °C | 150 | 1.57 mm | 0.062 in | 0.05 in | 1.27 mm | Female | Card Extender | 2 | Board Edge Straddle Mount | Dual |

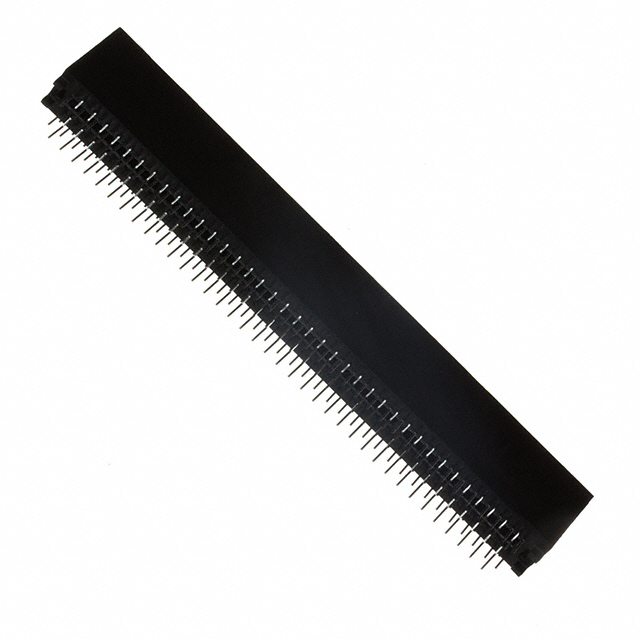

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Hairpin Bellows | Phosphor Bronze | Non Specified - Dual Edge | Solder Staggered | 75 | 0.25 Ám | 10 Áin | Black | Gold | -65 ░C | 125 °C | 150 | 1.57 mm | 0.062 in | 0.05 in | 1.27 mm | Female | 2 | Through Hole | Dual |
