SSV Series

Catalog

SWITCH SLIDE DIP SPST 0.4VA 20V

Part	Mechanical Life	Electrical Life	Length	Length	Body Material	Features	Mounting Type	Height Above Board	Height Above Board	Circuit	Actuator Level	Voltage Rating	Termination Style	Actuator Type	Pitch	Pitch	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Length [x]	Length [x]

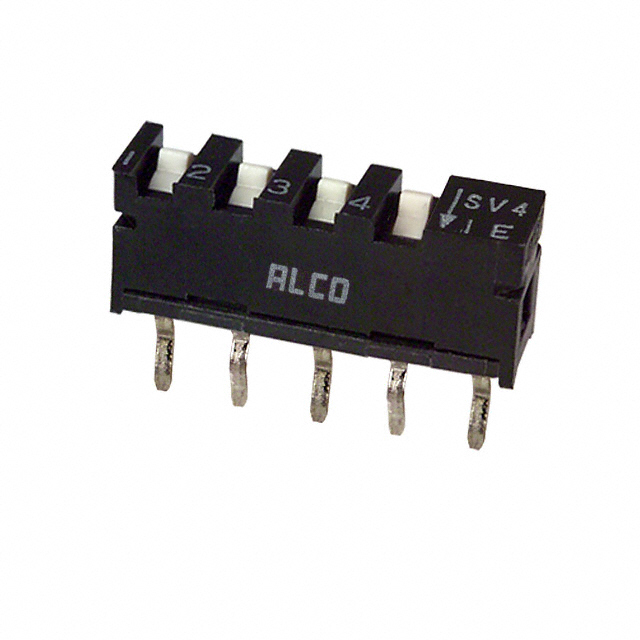

TE Connectivity AMP Connectors SSV04	1000 Cycles	1000 Cycles	0.498 in	12.65 mm	Polyphenylene Sulfide (PPS)	Process Sealed	Through Hole	5 mm	0.197 in	SPST	Flush Recessed	20 VAC/DC	PC Pin	Slide (Standard)	2.54 mm	0.1 "	4	85 °C	-30 ░C	Gold	Beryllium Copper
TE Connectivity AMP Connectors SSV10	1000 Cycles	1000 Cycles			Polyphenylene Sulfide (PPS)	Process Sealed	Through Hole	5 mm	0.197 in	SPST	Flush Recessed	20 VAC/DC	PC Pin	Slide (Standard)	2.54 mm	0.1 "	10	85 °C	-30 ░C	Gold	Beryllium Copper	1.098 in	27.89 mm
TE Connectivity AMP Connectors SSV08	1000 Cycles	1000 Cycles			Polyphenylene Sulfide (PPS)	Process Sealed	Through Hole	5 mm	0.197 in	SPST	Flush Recessed	20 VAC/DC	PC Pin	Slide (Standard)	2.54 mm	0.1 "	8	85 °C	-30 ░C	Gold	Beryllium Copper	0.898 in	22.82 mm
