PT08P Series

Catalog

CONN PLUG FMALE 26P GOLD SLD CUP

Part	Contact Finish - Mating	Color	Shielding	Termination	Mounting Type	Shell Material	Connector Type	Shell Finish	Operating Temperature (Max)	Operating Temperature (Min)	Features	Number of Positions	Contact Material	Applications	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Insert Material	Fastening Type	Orientation	Primary Material	Qualification	Backshell Material, Plating	Shell Size - Insert Width	Shell Size - Insert Length
Amphenol Aerospace Operations PT08P-16-26SW	Gold	Olive Drab	Unshielded	Solder Cup	Free Hanging (In-Line) Right Angle	Aluminum	Female Sockets Plug	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut Potted	26	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	16 S	26	Neoprene	Bayonet Lock	W	Metal	MIL-DTL-26482 Series I

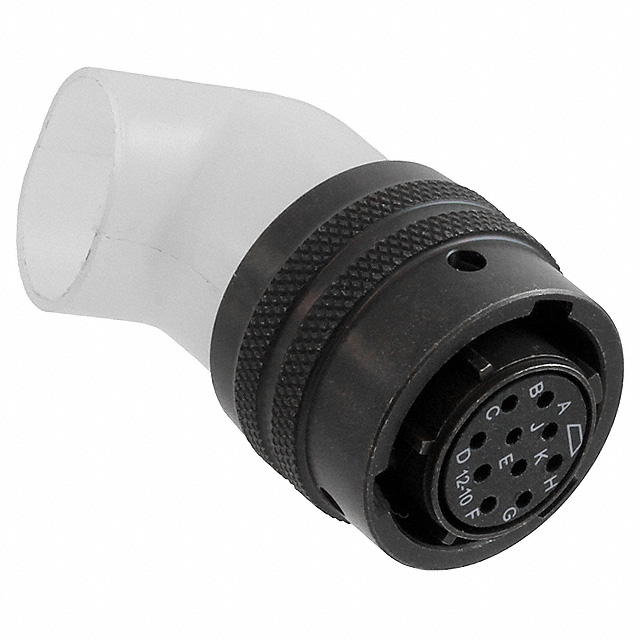

Amphenol Aerospace Operations PT08P-12-10S	Gold	Olive Drab	Unshielded	Solder Cup	Free Hanging (In-Line) Right Angle	Aluminum	Female Sockets Plug	Cadmium Olive Drab Chromate	125 °C	-55 °C	Coupling Nut Potted	10	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military			Neoprene	Bayonet Lock	N (Normal)	Metal	MIL-DTL-26482 Series I	Aluminum Olive Drab Cadmium	10 mm	12 mm
