Z20 Series

Catalog

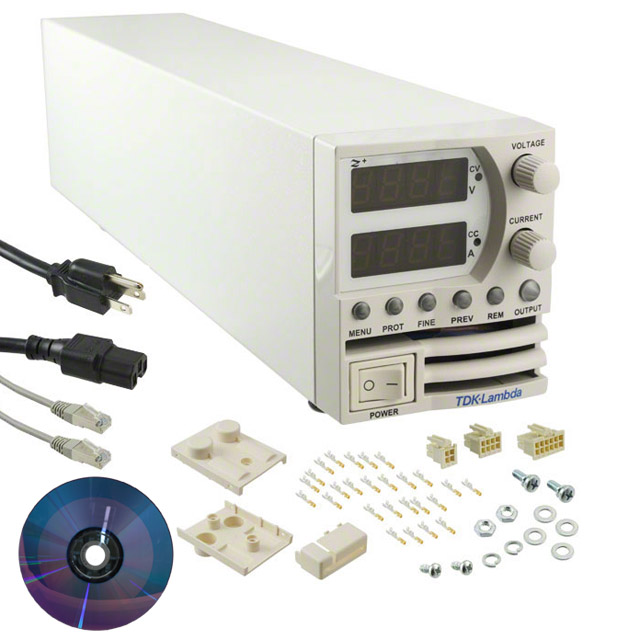

BENCH TOP POWER SUPPLIES 0-20VOUT 0-20A 400W ISO V PROGRAM USCORD

Part	Ripple	Voltage Regulation - Load	Voltage Regulation - Line	Current Regulation - Line	Accuracy - Voltmeter; Ammeter	Weight [custom]	Weight [custom]	Current Regulation - Load	Number of Characters	Number of Characters	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Output [Max]	Type	Voltage - Output [Max]	Power (Watts)	Number of Outputs	Features	Display Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]
TDK Corporation Z20-20-IS510-U	5 mV	2 mV	2 mV	2 mA	0.5% + 1 count	5.3 lbs	2.4 kg	0.01 % 5 mA	2	4	85 VAC/DC	265 VAC	20 A	Bench (AC to DC)	20 V	400 W	1	Programmable RS232 RS485 USB Interface	Digital	83 mm	4.134 in	105 mm	350 mm	13.78 in	3.268 "
TDK Corporation Z20-40-LAN-U	6.25 mV	2 mV	2 mV	2 mA	0.5% + 1 count	4.2 lbs	1.9 kg	0.01 % 5 mA	2	4	85 VAC/DC	265 VAC	40 A	Bench (AC to DC)	20 V	800 W	1	LAN Programmable RS232 RS485 USB Interface	Digital	83 mm	2.756 in	70 mm	350 mm	13.78 in	3.268 "
TDK Corporation Z20-20-L-U	5 mV	2 mV	2 mV	2 mA	0.5% + 1 count	5.3 lbs	2.4 kg	0.01 % 5 mA	2	4	85 VAC/DC	265 VAC	20 A	Bench (AC to DC)	20 V	400 W	1	Programmable RS232 RS485 USB Interface	Digital	83 mm	4.134 in	105 mm	350 mm	13.78 in	3.268 "
TDK Corporation Z20-20-IEEE-U	5 mV	2 mV	2 mV	2 mA	0.5% + 1 count	5.3 lbs	2.4 kg	0.01 % 5 mA	2	4	85 VAC/DC	265 VAC	20 A	Bench (AC to DC)	20 V	400 W	1	GPIB Programmable RS232 RS485 USB Interface	Digital	83 mm	4.134 in	105 mm	350 mm	13.78 in	3.268 "
TDK Corporation Z20-10-U	5 mV	2 mV	2 mV	2 mA	0.5% + 1 count	4.2 lbs	1.9 kg	0.01 % 5 mA	2	4	85 VAC/DC	265 VAC	10 A	Bench (AC to DC)	20 V	200 Watts	1	Programmable RS232 RS485 USB Interface	Digital	83 mm	2.756 in	70 mm	350 mm	13.78 in	3.268 "
TDK Corporation Z20-40-LAN-L-U	6.25 mV	2 mV	2 mV	2 mA	0.5% + 1 count	5.3 lbs	2.4 kg	0.01 % 5 mA	2	4	85 VAC/DC	265 VAC	40 A	Bench (AC to DC)	20 V	800 W	1	LAN Programmable RS232 RS485 USB Interface	Digital	83 mm	4.134 in	105 mm	350 mm	13.78 in	3.268 "
TDK Corporation Z20-10-LAN-U	5 mV	2 mV	2 mV	2 mA	0.5% + 1 count	4.2 lbs	1.9 kg	0.01 % 5 mA	2	4	85 VAC/DC	265 VAC	10 A	Bench (AC to DC)	20 V	200 Watts	1	LAN Programmable RS232 RS485 USB Interface	Digital	83 mm	2.756 in	70 mm	350 mm	13.78 in	3.268 "
TDK Corporation Z20-30-LAN-L-U	6.25 mV	2 mV	2 mV	2 mA	0.5% + 1 count	5.3 lbs	2.4 kg	0.01 % 5 mA	2	4	85 VAC/DC	265 VAC	30 A	Bench (AC to DC)	20 V	600 W	1	LAN Programmable RS232 RS485 USB Interface	Digital	83 mm	4.134 in	105 mm	350 mm	13.78 in	3.268 "
TDK Corporation Z20-30-U	6.25 mV	2 mV	2 mV	2 mA	0.5% + 1 count	4.2 lbs	1.9 kg	0.01 % 5 mA	2	4	85 VAC/DC	265 VAC	30 A	Bench (AC to DC)	20 V	600 W	1	Programmable RS232 RS485 USB Interface	Digital	83 mm	2.756 in	70 mm	350 mm	13.78 in	3.268 "
TDK Corporation Z20-40-IS420-U	6.25 mV	2 mV	2 mV	2 mA	0.5% + 1 count	5.3 lbs	2.4 kg	0.01 % 5 mA	2	4	85 VAC/DC	265 VAC	40 A	Bench (AC to DC)	20 V	800 W	1	Programmable RS232 RS485 USB Interface	Digital	83 mm	4.134 in	105 mm	350 mm	13.78 in	3.268 "
