AFC0712 Series

Catalog

FAN AXIAL 70X25.4MM 12VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Approval Agency	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Noise	Termination	Width [y]	Static Pressure	Static Pressure	RPM	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Voltage - Rated	Air Flow	Air Flow	Fan Type	Features	Weight [custom]	Weight [custom]
Delta Electronics AFC0712DXEB	40000 Hrs	Plastic	Plastic	0.35 A	10.8 VDC	12.6 VDC	CE CSA UL VDE	1 Ball 1 Sleeve	-10 °C	60 °C	67.13 g	0.148 lb	45.5 dB(A)	4 Wire Leads	25.4 mm	0.39 in H2O	97.1 Pa	5000 RPM	70 mm	70 mm	4.2 W	12 VDC	48 CFM	1.34 m³/min	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)

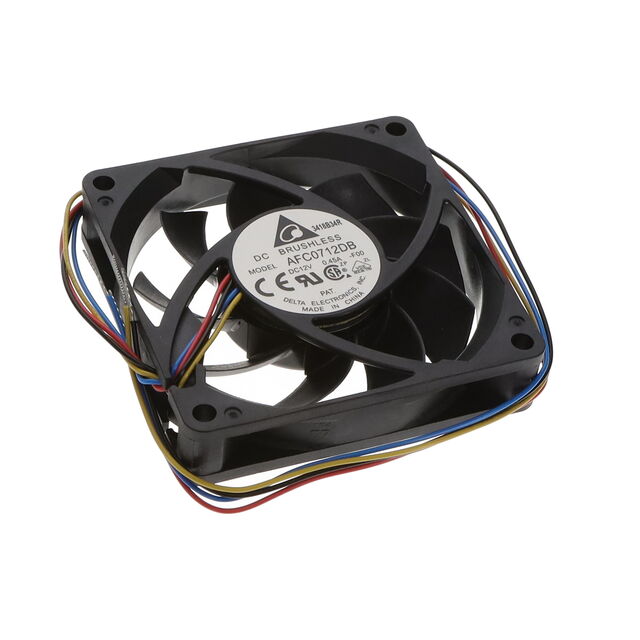

Delta Electronics AFC0712DB-F00	70000 Hrs	Plastic	Plastic	0.35 A	8 V	13.2 VDC	CE CSA UL VDE	Ball	-10 °C	60 °C			46.5 dB	4 Wire Leads	15 mm			6000 RPM	70 mm	70 mm	4.2 W	12 VDC	42 CFM	1.18 m³/min	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)	47.17 g	0.104 lb

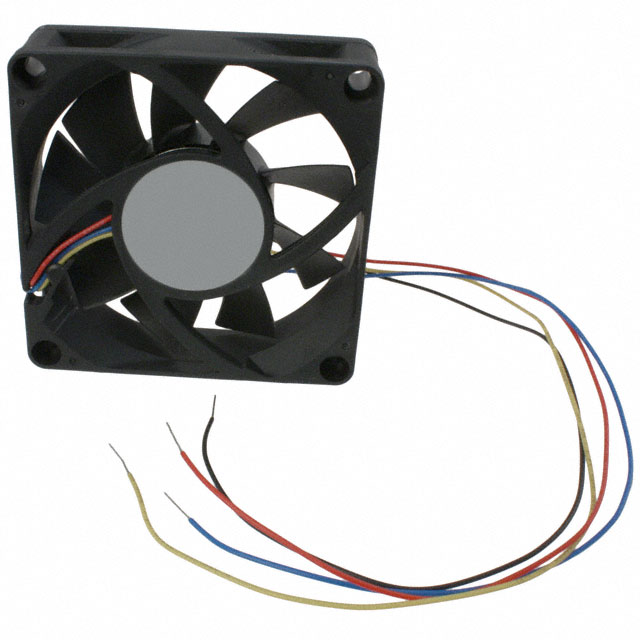

Delta Electronics AFC0712DD-TP10	70000 Hrs	Plastic	Plastic	0.35 A	8 V	13.2 VDC	CE TUV UL	Ball	-10 °C	60 °C	69.85 g	0.154 lb	44.3 dB(A)	4 Wire Leads	20 mm	0.285 in H2O	71 Pa	5000 RPM	70 mm	70 mm	4.2 W	12 VDC	46.9 CFM	1.31 mł/min	Tubeaxial	Locked Rotor Protection PWM Control Speed Sensor (Tach)
