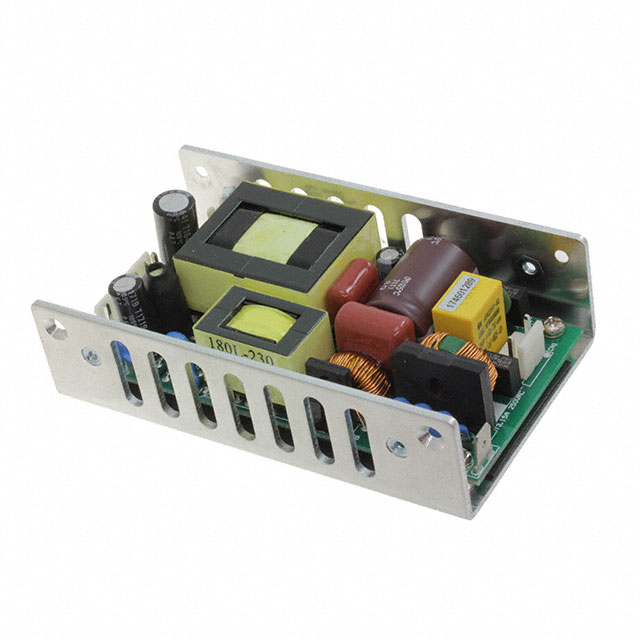

UCP180 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 48V 120W
| Part | Minimum Load Required | Efficiency | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Type | Current - Output 1 | Approval Agency | Standard Number | Number of Outputs | Mounting Type | Voltage - Isolation | Operating Temperature (Max) | Operating Temperature (Min) | Power (Watts) | Applications | Features | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | No | 92 % | 85 VAC | 264 V | Open Frame | 2.5 A | CB TUV UL | 62368-1 | 1 | Chassis Mount | 4000 Vpk | 70 °C | -40 °C | 120 W 180 W | ITE (Commercial) Medical | PFC Universal Input | 4.24 in | 1.16 in | 2.47 in | 48 V |
XP Power | No | 92 % | 85 VAC | 264 V | Open Frame | 8 A | CB TUV UL | 62368-1 | 1 | Chassis Mount | 4000 Vpk | 70 °C | -40 °C | 120 W 180 W | ITE (Commercial) Medical | PFC Universal Input | 4.24 in | 1.16 in | 2.47 in | 15 V |

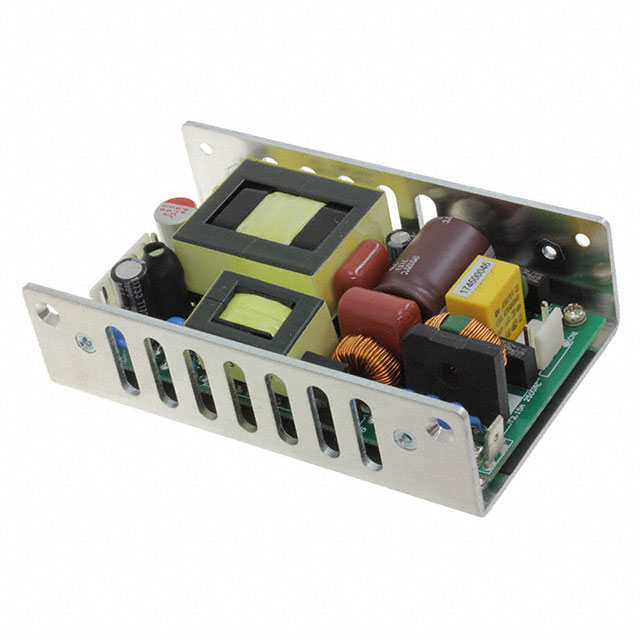

 XP Power | No | 92 % | 85 VAC | 264 V | Open Frame | 10 A | CB TUV UL | 62368-1 | 1 | Chassis Mount | 4000 Vpk | 70 °C | -40 °C | 120 W 180 W | ITE (Commercial) Medical | PFC Universal Input | 4.24 in | 1.16 in | 2.47 in | 12 V |
 XP Power | No | 92 % | 85 VAC | 264 V | Open Frame | 3.33 A | CB TUV UL | 62368-1 | 1 | Chassis Mount | 4000 Vpk | 70 °C | -40 °C | 120 W 180 W | ITE (Commercial) Medical | PFC Universal Input | 4.24 in | 1.16 in | 2.47 in | 36 V |
XP Power | 92 % | 85 VAC | 264 V | Open Frame | 4.3 A | CB TUV UL | 62368-1 | 1 | Chassis Mount | 4000 Vpk | 70 °C | -40 °C | 120 W 180 W | ITE (Commercial) Medical | PFC Universal Input | 4.24 in | 1.16 in | 2.47 in | 28 V |
