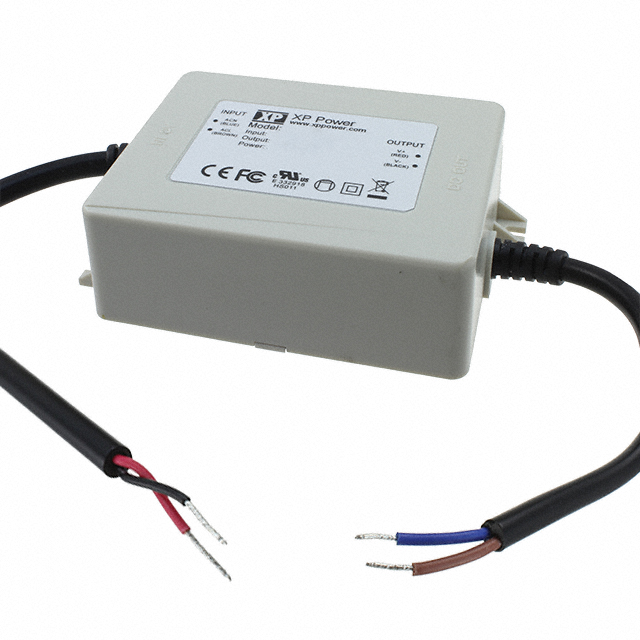

DLE25 Series

Manufacturer: XP Power

Catalog

LED POWER SUPPLIES AC-DC LED DRIVER 25W

Part	Mounting Type	Weight [custom]	Weight [custom]	Efficiency	Current - Output (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Power (Watts)	Ratings	Number of Outputs	Voltage - Input (Max) [Max]	Type	Features	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Topology
XP Power DLE25PS24	Chassis Mount	349.27 g	0.77 lb	80 %	1.05 A	24 V	16 V	Wire Leads	-20 ░C	50 °C	CE TUV UL	25 W	IP67	1	305 VAC	Constant Current Voltage	OCP OVP SCP	3750 VDC	2.89 "	73.5 mm	33 mm	1.29 in	93.5 mm	3.68 "	90 VAC	AC DC Converter
XP Power DLE25PS12	Chassis Mount	349.27 g	0.77 lb	79 %	2.1 A	12 V	9 V	Wire Leads	-20 ░C	50 °C	CE TUV UL	25 W	IP67	1	305 VAC	Constant Current Voltage	OCP OVP SCP	3750 VDC	2.89 "	73.5 mm	33 mm	1.29 in	93.5 mm	3.68 "	90 VAC	AC DC Converter
XP Power DLE25PS48	Chassis Mount	349.27 g	0.77 lb	80 %	500 mA	48 V	34 V	Wire Leads	-20 ░C	50 °C	CE TUV UL	24 W	IP67	1	305 VAC	Constant Current Voltage	OCP OVP SCP	3750 VDC	2.89 "	73.5 mm	33 mm	1.29 in	93.5 mm	3.68 "	90 VAC	AC DC Converter
