1014 Series

Catalog

BOARD MOUNT HUMIDITY SENSORS HTU31D I.C 31D RH/T DIGITAL R1500

Part	Mounting Type	Package Name	Package Length	Package Width	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Humidity Range (Maximum)	Humidity Range (Minimum)	Package / Case	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Response Time	Sensor Type	Accuracy
TE Connectivity AMP Connectors 10142048-01	Surface Mount	6-DFN	2.5 mm	2.5 mm	5.5 V	3 V	100 % RH	0 % RH	6-VDFN Exposed Pad	Digital I2C	125 °C	-40 °C	5 s	Humidity Temperature	2 %
TE Connectivity AMP Connectors 101446-107
TE Connectivity AMP Connectors 10142032-01														Humidity Pressure Temperature
TE Connectivity AMP Connectors 10142048-02	Surface Mount	6-DFN	2.5 mm	2.5 mm	5.5 V	3 V	100 % RH	0 % RH	6-VDFN Exposed Pad	Digital I2C	125 °C	-40 °C	5 s	Humidity Temperature	2 %

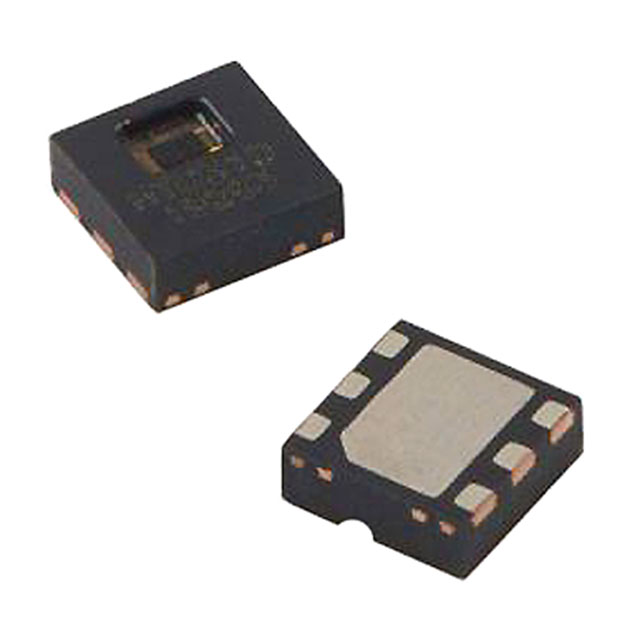

TE Connectivity AMP Connectors 10142048-00	Surface Mount	6-DFN	2.5 mm	2.5 mm	5.5 V	3 V	100 % RH	0 % RH	6-VDFN Exposed Pad	Digital I2C	125 °C	-40 °C	5 s	Humidity Temperature	2 %
TE Connectivity AMP Connectors 101450-58
TE Connectivity AMP Connectors 10142048-10	Surface Mount	6-DFN	2.5 mm	2.5 mm	5.5 V	3 V	100 % RH	0 % RH	6-VDFN Exposed Pad	Analog Voltage	125 °C	-40 °C	5 s	Humidity Temperature	2 %
