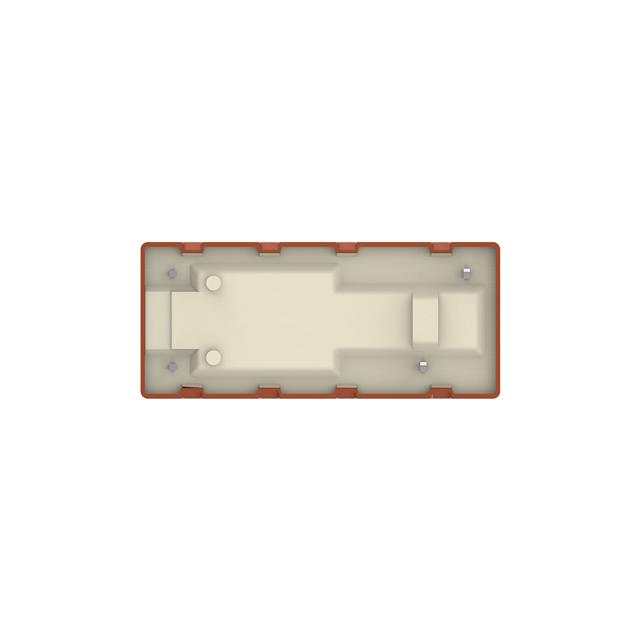

RZ01-1A3 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RZ01-1A3-D009
| Part | Coil Resistance | Mounting Type | Coil Current | Termination Style | Load - Max Switching | Coil Type | Coil Voltage | Release Time | Must Release Voltage | Contact Material | Contact Rating (Current) | Contact Form | Coil Insulation | Operate Time | Switching Voltage [Max] | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 200 Ohms | Through Hole | 45 mA | PC Pin | 4800 VA | Non Latching | 9 VDC | 6 ms | 0.9 VDC | Silver Tin Oxide (AgSnO) | 12 A | SPST-NO (1 Form A) | Class F | 8 ms | 400 VAC | General Purpose | 85 °C | -40 C | 6.3 VDC | CQC cURus VDE |
