AD5760 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

ULTRA STABLE 16-BIT ±0.5 LSB INL, VOLTAGE OUTPUT DAC

Part	Architecture	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Output Type	Number of Bits	Settling Time (Typical)	Number of D/A Converters	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 1 Max)	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Analog (Range 1 Min)	Package Name	Package Width	Package Length	Data Interface	Differential Output	Reference Type	DNL (Max) (LSB)	INL (Max) (LSB)	Package / Case	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Settling Time	DAC Type	Utilized IC / Part	Contents	Number of DAC's
Analog Devices Inc./Maxim Integrated AD5760BCPZ	R-2R	2.7 V	5.5 V	Voltage - Unbuffered	16 bits	3.5 µs	1 count	-2.5 V	16.5 V	16.5 V	7.5 V	24-LFCSP-VQ	5 mm	4 mm	DSP SPI	No	External	1 LSB	2 LSB	24-VFQFN Exposed Pad CSP	Surface Mount	125 °C	-40 °C
Analog Devices Inc./Maxim Integrated AD5760ACPZ-REEL7	R-2R	2.7 V	5.5 V	Voltage - Unbuffered	16 bits	3.5 µs	1 count	-2.5 V	16.5 V	16.5 V	7.5 V	24-LFCSP-VQ	5 mm	4 mm	DSP SPI	No	External	1 LSB	2 LSB	24-VFQFN Exposed Pad CSP	Surface Mount	125 °C	-40 °C
Analog Devices Inc./Maxim Integrated AD5760ACPZ	R-2R	2.7 V	5.5 V	Voltage - Unbuffered	16 bits	3.5 µs	1 count	-2.5 V	16.5 V	16.5 V	7.5 V	24-LFCSP-VQ	5 mm	4 mm	DSP SPI	No	External	1 LSB	2 LSB	24-VFQFN Exposed Pad CSP	Surface Mount	125 °C	-40 °C
Analog Devices Inc./Maxim Integrated AD5760BCPZ-REEL7	R-2R	2.7 V	5.5 V	Voltage - Unbuffered	16 bits	3.5 µs	1 count	-2.5 V	16.5 V	16.5 V	7.5 V	24-LFCSP-VQ	5 mm	4 mm	DSP SPI	No	External	1 LSB	2 LSB	24-VFQFN Exposed Pad CSP	Surface Mount	125 °C	-40 °C

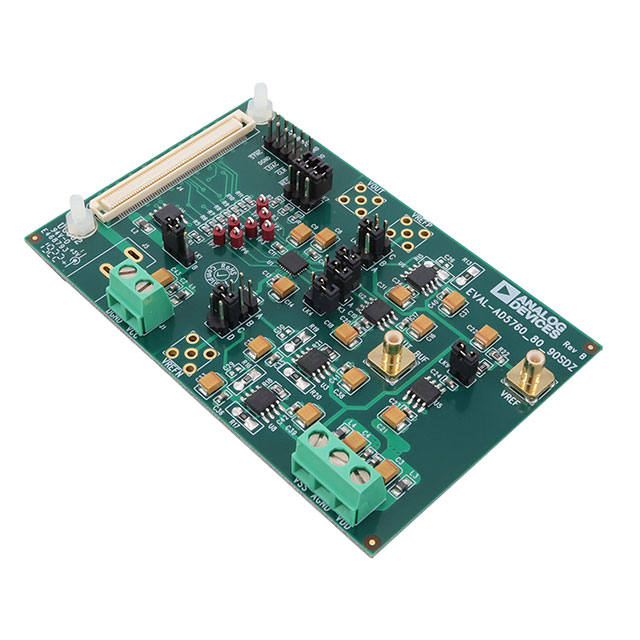

Analog Devices Inc./Maxim Integrated EVAL-AD5760SDZ					16 bits										DSP MICROWIRE™ QSPI™ Serial SPI™									2.5 µs	Voltage	AD5760	Board	1
