OSTNR14 Series

Catalog

3.5MM 2 PC TERM BLOCK HEADER VER

Part	Material Flammability Rating	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Housing Material	Contact Material	Current - UL	Number of Positions	Header Orientation	Type	Positions Per Level [custom]	Color	Voltage - UL	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Levels	Contact Mating Finish	Termination Style	Pitch	Pitch	Mounting Type	Insulation Height [z]	Insulation Height [z]

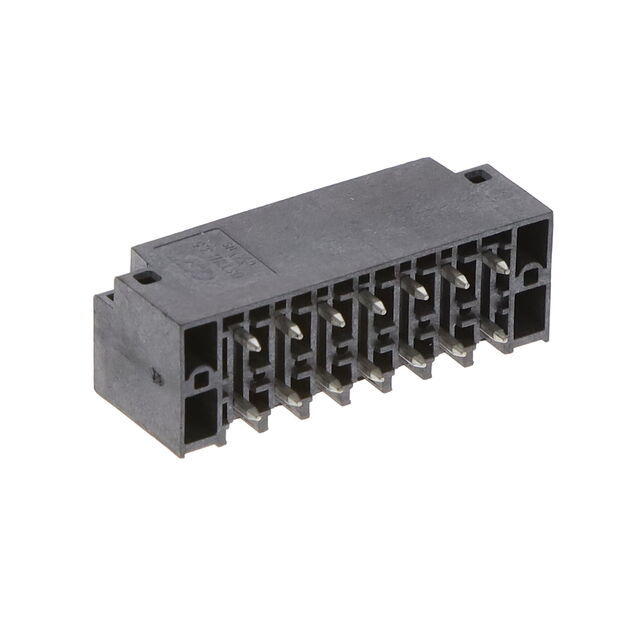

On Shore Technology Inc. OSTNR141200	UL94 V-0	11.6 mm	0.457 in	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	Copper	8 A	14	Vertical	Header Male Pins Shrouded (4 Side)	7	Black	300 V	115 °C	-40 C	Mating Flange	2	Tin	Solder	3.5 mm	0.138 "	Through Hole
On Shore Technology Inc. OSTNR141201	UL94 V-0			2 mm	0.079 in	Liquid Crystal Polymer (LCP)	Copper	8 A	14	90° Right Angle	Header Male Pins Shrouded (4 Side)	7	Black	150 V	115 °C	-40 C	Mating Flange	2	Tin	Solder	3.5 mm	0.138 "	Through Hole	10.8 mm	0.425 in

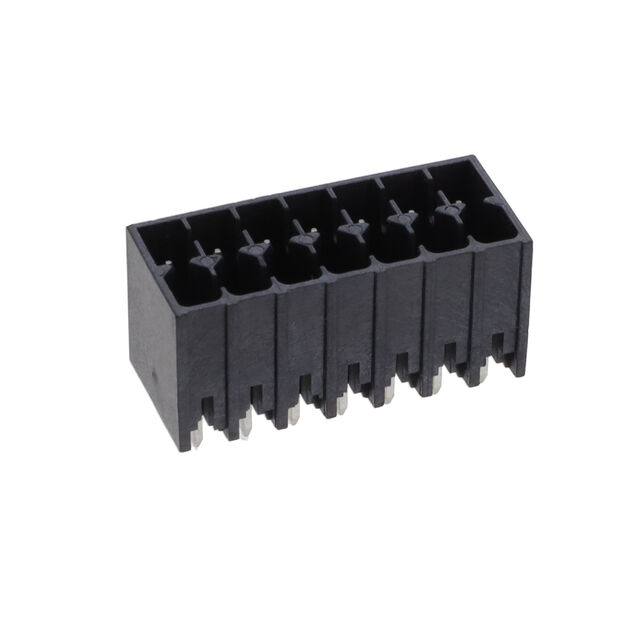

On Shore Technology Inc. OSTNR141100	UL94 V-0	11.6 mm	0.457 in	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	Copper	8 A	14	Vertical	Header Male Pins Shrouded (4 Side)	7	Black	300 V	115 °C	-40 C		2	Tin	Solder	3.5 mm	0.138 "	Through Hole
On Shore Technology Inc. OSTNR141101	UL94 V-0			2 mm	0.079 in	Liquid Crystal Polymer (LCP)	Copper	8 A	14	90° Right Angle	Header Male Pins Shrouded (4 Side)	7	Black	150 V	115 °C	-40 C		2	Tin	Solder	3.5 mm	0.138 "	Through Hole	10.8 mm	0.425 in
