PSAC24A Series

Catalog

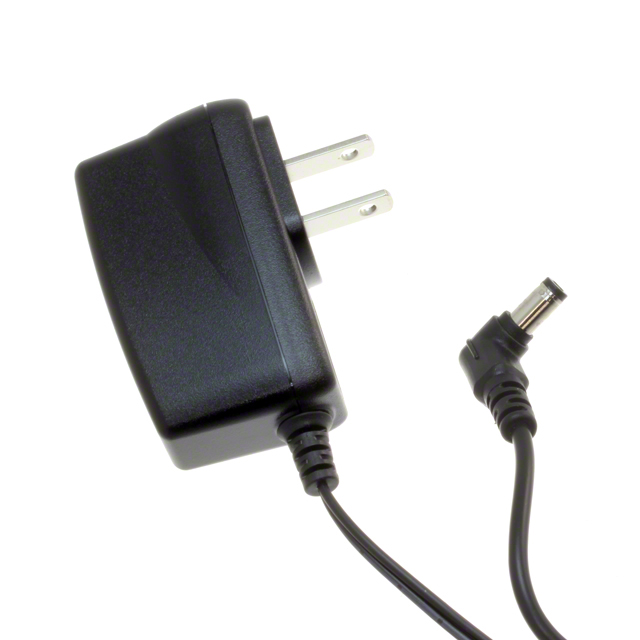

AC/DC WALL MOUNT ADAPTER 12V 24W

Part	Weight [custom]	Weight [custom]	Form	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Region Utilized	Input Type	Polarization	Current - Output (Max) [Max]	Voltage - Output	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Output Connector [diameter]	Output Connector	Output Connector [x]	No Load Power Consumption	Approval Agency	Input Connector	Applications	Standard Number	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]
Phihong USA PSAC24A-120L6-R-CR1	0.364 lb	165.11 g	Wall Mount	40 °C	0 °C	Level VI	North America	Fixed Blade	Positive Center	2 A	12 V	24 W	264 VAC	90 VAC	1.5 m	59 in	2.1 mm 5.5 mm	Barrel Plug R/A	10 mm	30 mW	cULus	NEMA 1-15P	ITE (Commercial)	60950-1 62368-1	1.38 in	35 mm	3.29 in	53.5 mm	2.11 in	83.5 mm
