3602 Series

Catalog

RELAY REED DPST 250MA 12V

Part	Coil Resistance	Switching Voltage	Coil Voltage	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Contact Form	Operate Time	Must Release Voltage	Must Operate Voltage	Release Time	Contact Rating (Current)	Coil Current	Termination Style
COTO TECHNOLOGY 3602-12-92	2 kOhms	150 VDC 150 VAC	12 VDC	Through Hole	85 °C	-20 ░C	Non Latching	DPST-NO (2 Form A)	750 µs	1 VDC	9 VDC	0.1 ms	250 mA	6 mA	PC Pin
COTO TECHNOLOGY 3602-12-52	2 kOhms	150 VDC 150 VAC	12 VDC	Through Hole	85 °C	-20 ░C	Non Latching	DPST-NO (2 Form A)	750 µs	1 VDC	9 VDC	0.1 ms	250 mA	6 mA	PC Pin
COTO TECHNOLOGY 3602-05-82	350 Ohms	150 VDC 150 VAC	5 VDC	Through Hole	85 °C	-20 ░C	Non Latching	DPST-NO (2 Form A)	750 µs	0.4 VDC	3.8 VDC	0.1 ms	250 mA	14.3 mA	PC Pin

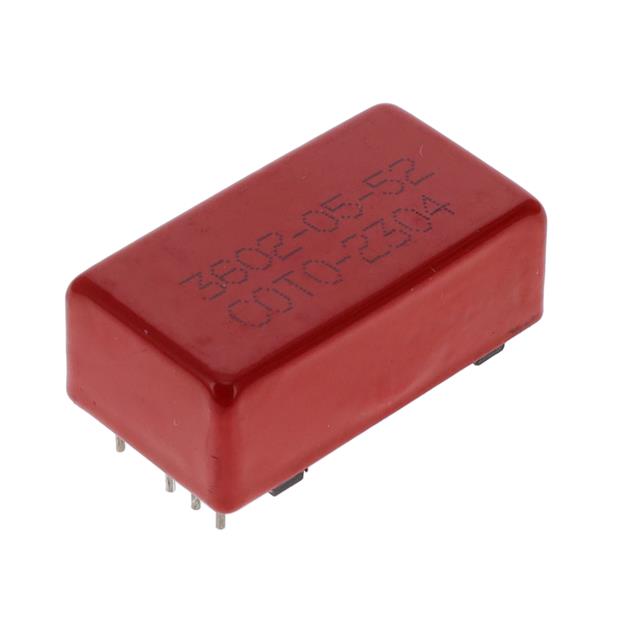

COTO TECHNOLOGY 3602-05-52	350 Ohms	150 VDC 150 VAC	5 VDC	Through Hole	85 °C	-20 ░C	Non Latching	DPST-NO (2 Form A)	750 µs	0.4 VDC	3.8 VDC	0.1 ms	250 mA	14.3 mA	PC Pin
COTO TECHNOLOGY 3602-05-72	350 Ohms	150 VDC 150 VAC	5 VDC	Through Hole	85 °C	-20 ░C	Non Latching	DPST-NO (2 Form A)	750 µs	0.4 VDC	3.8 VDC	0.1 ms	250 mA	14.3 mA	PC Pin
COTO TECHNOLOGY 3602-05-92	350 Ohms	150 VDC 150 VAC	5 VDC	Through Hole	85 °C	-20 ░C	Non Latching	DPST-NO (2 Form A)	750 µs	0.4 VDC	3.8 VDC	0.1 ms	250 mA	14.3 mA	PC Pin
COTO TECHNOLOGY 3602-12-72	2 kOhms	150 VDC 150 VAC	12 VDC	Through Hole	85 °C	-20 ░C	Non Latching	DPST-NO (2 Form A)	750 µs	1 VDC	9 VDC	0.1 ms	250 mA	6 mA	PC Pin
