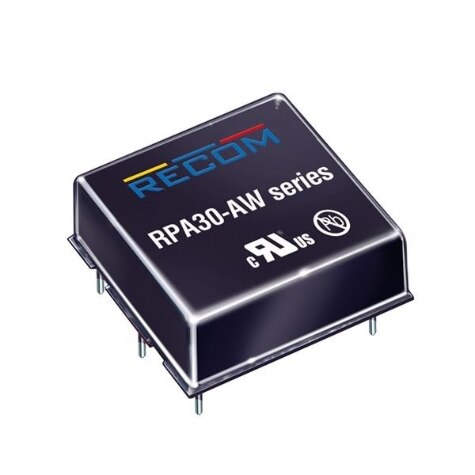

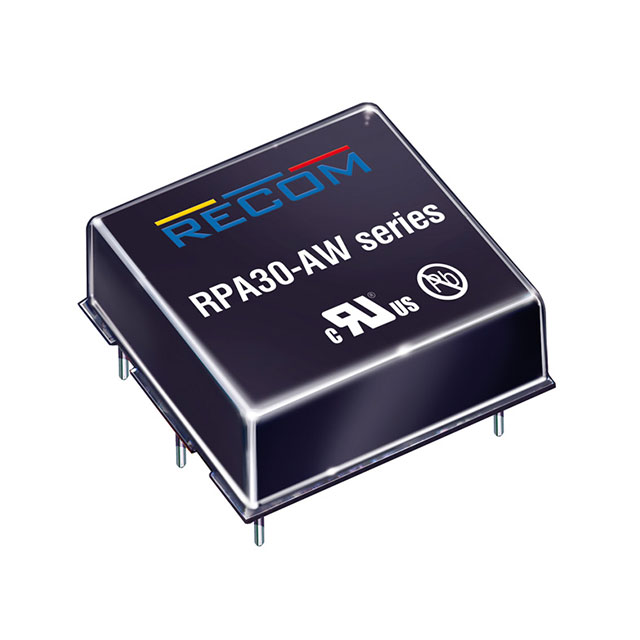

RPA30-AW Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W 9-36VIN +/-15VOUT 1A
| Part | Voltage - Input (Max) [Max] | Applications | Control Features | Features | Voltage - Isolation | Type | Package / Case | Mounting Type | Number of Outputs | Power (Watts) | Voltage - Output 2 | Voltage - Input (Min) [Min] | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) | Efficiency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 36 V | ITE (Commercial) Railway | Active Low Enable | OCP OTP OVP Remote On/Off SCP UVLO | 1.6 kV | Isolated Module | 6-DIP Module | Through Hole | 2 | 30 Watts | -15 V | 9 V | 15 V | 105 C | -40 °C | 1 A | 88 % | |||||||
 Recom Power | 36 V | ITE (Commercial) Railway | Active High Enable | OCP OTP OVP Remote On/Off SCP UVLO | 1.6 kV | Isolated Module | 6-DIP Module | Through Hole | 1 | 30 Watts | 9 V | 12 V | 105 C | -40 °C | 88 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 2.5 A | ||
 Recom Power | 36 V | ITE (Commercial) Railway | OCP OTP OVP SCP UVLO | 1.6 kV | Isolated Module | 6-DIP Module 5 Leads | Through Hole | 1 | 30 Watts | 9 V | 3.3 V | 105 C | -40 °C | 88 % | 7.5 A | |||||||||
Recom Power | 36 V | ITE (Commercial) Railway | Active Low Enable | OCP OTP OVP Remote On/Off SCP UVLO | 1.6 kV | Isolated Module | 6-DIP Module | Through Hole | 1 | 30 Watts | 9 V | 12 V | 105 C | -40 °C | 88 % | 2.5 A | ||||||||
 Recom Power | 36 V | ITE (Commercial) Railway | Active High Enable | OCP OTP OVP Remote On/Off SCP UVLO | 1.6 kV | Isolated Module | 6-DIP Module | Through Hole | 1 | 30 Watts | 9 V | 5 V | 105 C | -40 °C | 89 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 6 A | ||
Recom Power | 36 V | ITE (Commercial) Railway | OCP OTP OVP SCP UVLO | 1.6 kV | Isolated Module | 6-DIP Module 5 Leads | Through Hole | 2 | 30 Watts | -12 V | 9 V | 12 V | 105 C | -40 °C | 1.25 A | 88 % | ||||||||
Recom Power | 36 V | ITE (Commercial) Railway | Active High Enable | OCP OTP OVP Remote On/Off SCP UVLO | 1.6 kV | Isolated Module | 6-DIP Module | Through Hole | 1 | 30 Watts | 9 V | 15 V | 105 C | -40 °C | 88 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 2 A | ||
 Recom Power | 36 V | ITE (Commercial) Railway | Active High Enable | OCP OTP OVP Remote On/Off SCP UVLO | 1.6 kV | Isolated Module | 6-DIP Module | Through Hole | 1 | 30 Watts | 9 V | 5 V | 105 C | -40 °C | 89 % | 6 A | ||||||||
Recom Power | 36 V | ITE (Commercial) Railway | Active High Enable | OCP OTP OVP Remote On/Off SCP UVLO | 1.6 kV | Isolated Module | 6-DIP Module | Through Hole | 2 | 30 Watts | -15 V | 9 V | 15 V | 105 C | -40 °C | 1 A | 88 % | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | |
Recom Power | 36 V | ITE (Commercial) Railway | OCP OTP OVP SCP UVLO | 1.6 kV | Isolated Module | 6-DIP Module 5 Leads | Through Hole | 1 | 30 Watts | 9 V | 12 V | 105 C | -40 °C | 88 % | 2.5 A |
