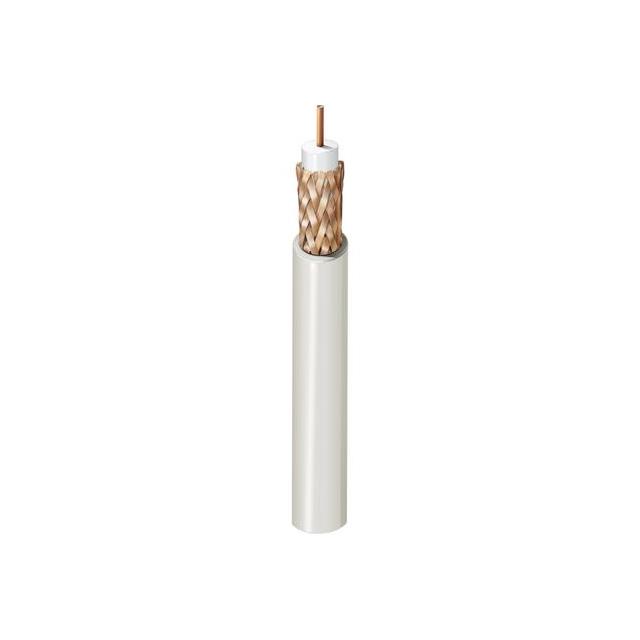

6539Y8 Series
Manufacturer: Belden Inc.
Beta
⌘K
COAX RG62/U FLRST
| Part | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | VoP, Velocity of Propagation | Conductor Material | Dielectric Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | Jacket (Insulation) Material | Shield Type | Conductor Strand | Wire Gauge | Jacket Color | Length [x] | Length [x] | Impedance | Cable Type | Cable Group | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 3.71 mm | 0.146 in | 84 | Copper Coated Steel | Foam Fluorinated Ethylene Propylene (FFEP) | 95 % | 75 ░C | 0 °C | Copper Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) | Braid | Solid | 22 AWG | Natural | 304.8 m | 1000 ft | 93 Ohms | Coaxial - Plenum | RG-62 | 5.18 mm | 0.204 " |
