XG4E Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

REPL COVER ONLY 60POS

Part	Number of Positions	For Use With/Related Products	Accessory Type	Features	Fastening Type	Cable Termination	Connector Type	Color	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Pitch	Pitch	Contact Finish	Contact Type	Mounting Type	Row Spacing	Row Spacing	Number of Rows [custom]	Wire Gauge

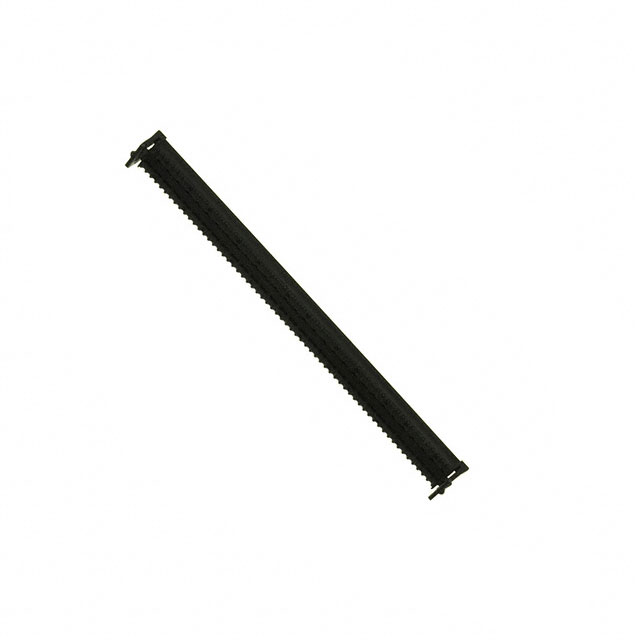

Omron Electronics Inc-EMC Div XG4E-6031-S011	60	XG4 Series	Cap (Cover)	Feed Through
Omron Electronics Inc-EMC Div XG4E-5071	50			Feed Through	Latch Lock/Eject Hooks Long	IDC	Plug	Black	5.9 µin	0.15 µm	Ribbon Cable	0.1 "	2.54 mm	Gold	Male Pin	Free Hanging (In-Line)	2.54 mm	0.1 "	2

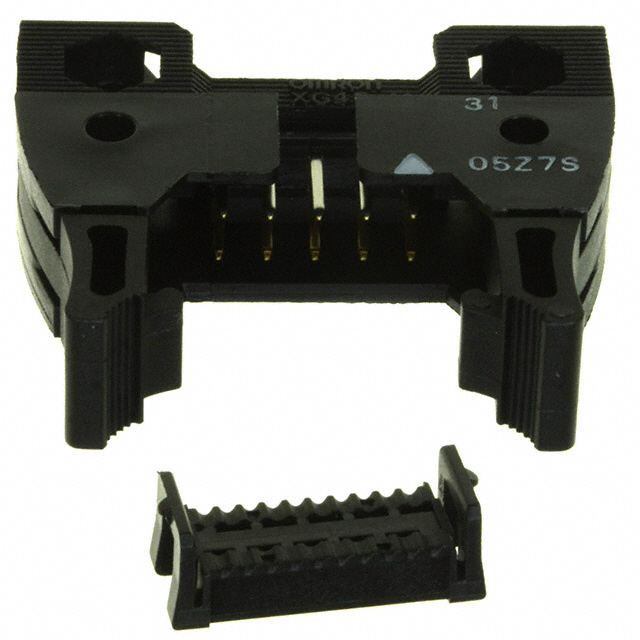

Omron Electronics Inc-EMC Div XG4E-1031	10			Feed Through	Latch Lock/Eject Hooks Long	IDC	Plug	Black	5.9 µin	0.15 µm	Ribbon Cable	0.1 "	2.54 mm	Gold	Male Pin	Free Hanging (In-Line)	2.54 mm	0.1 "	2	28 AWG
Omron Electronics Inc-EMC Div XG4E-6432	64			Feed Through	Latch Lock/Eject Hooks	IDC	Plug	Black	5.9 µin	0.15 µm	Ribbon Cable	0.1 "	2.54 mm	Gold	Male Pin	Free Hanging (In-Line)	2.54 mm	0.1 "	2

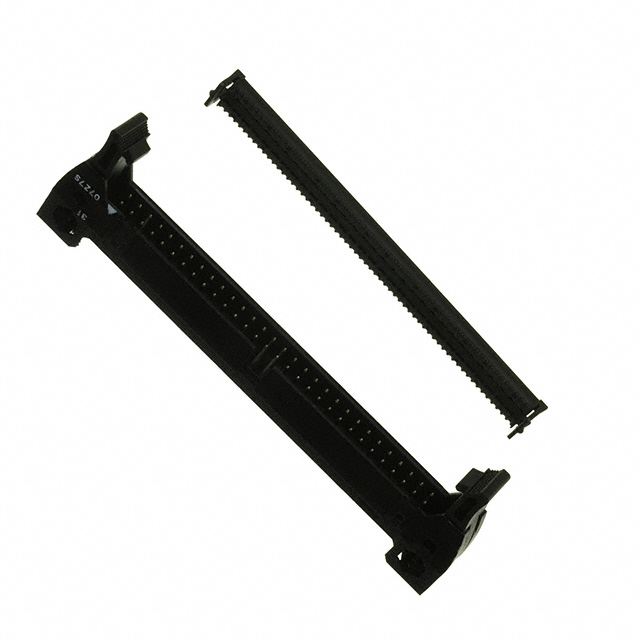

Omron Electronics Inc-EMC Div XG4E-6031	60			Feed Through	Latch Lock/Eject Hooks Long	IDC	Plug	Black	5.9 µin	0.15 µm	Ribbon Cable	0.1 "	2.54 mm	Gold	Male Pin	Free Hanging (In-Line)	2.54 mm	0.1 "	2	28 AWG

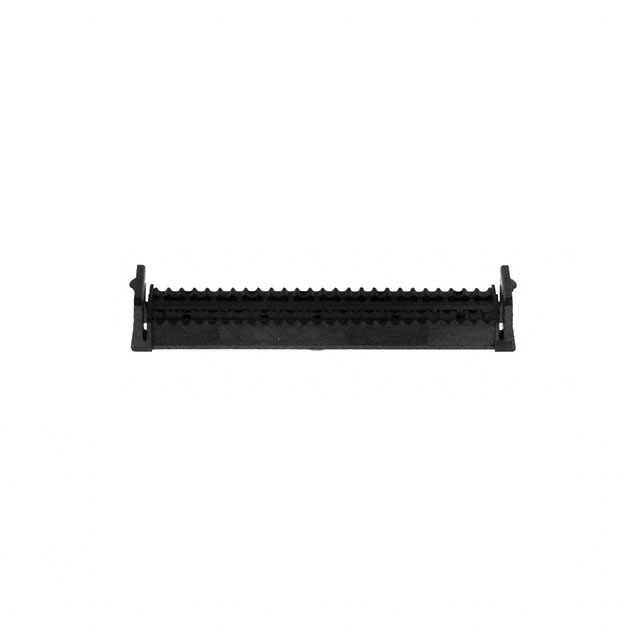

Omron Electronics Inc-EMC Div XG4E-2631-S003	26	XG4 Series	Cap (Cover)	Feed Through

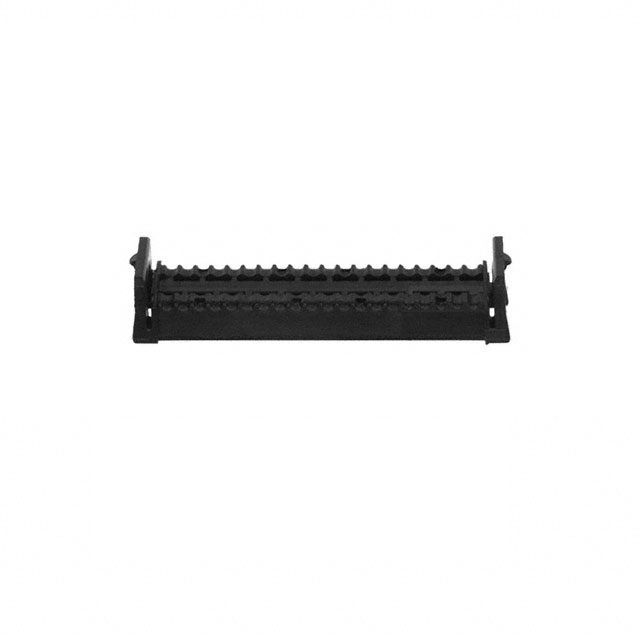

Omron Electronics Inc-EMC Div XG4E-2031-S005	20	XG4 Series	Cap (Cover)	Feed Through
Omron Electronics Inc-EMC Div XG4E-1031-S001	10	XG4 Series	Cap (Cover)	Feed Through

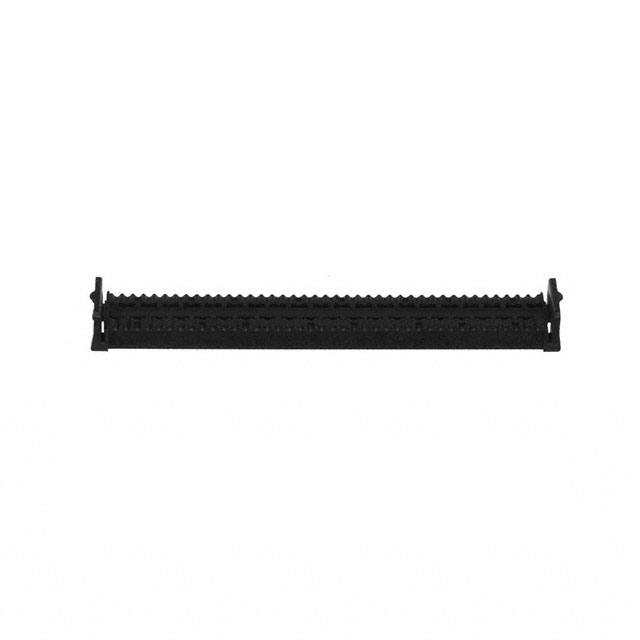

Omron Electronics Inc-EMC Div XG4E-4031-S009	40	XG4 Series	Cap (Cover)	Feed Through
Omron Electronics Inc-EMC Div XG4E-2632	26			Feed Through	Latch Lock/Eject Hooks	IDC	Plug	Black	5.9 µin	0.15 µm	Ribbon Cable	0.1 "	2.54 mm	Gold	Male Pin	Free Hanging (In-Line)	2.54 mm	0.1 "	2
