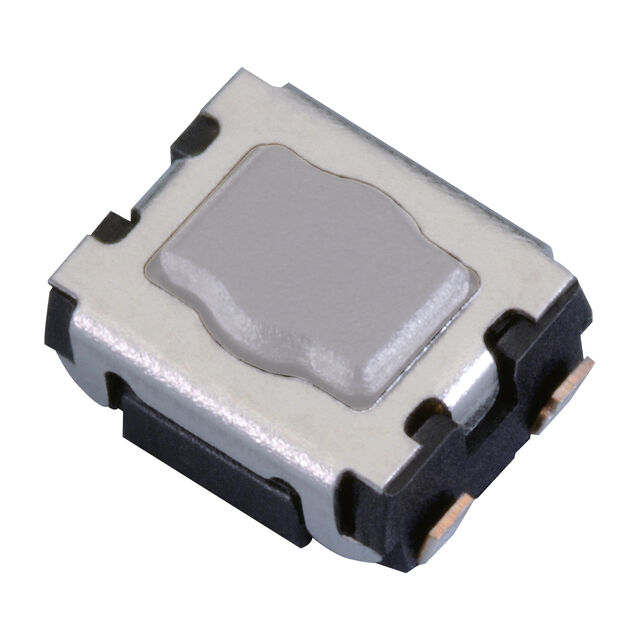

TL1030 Series
Manufacturer: E-Switch
Beta
⌘K
TACTILE SWITCHES TACT, SURFACE MOUNT, RIGHT ANGLE, GULL WING, 50MA, 12VDC
| Part | Mechanical Life | Switch Travel | Contact Rating @ Voltage | Switch Function | Mounting Type | Actuator Height off PCB, Vertical | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Orientation | Illumination | Circuit | Termination Style | Operating Force | Actuator Type | Outline [x] | Outline [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 200000 Cycles | 0.15 mm | 0.05 A 12 VDC | Off-Mom | Surface Mount | 1.7 mm | 85 °C | -40 C | Top Actuated | Non-Illuminated | SPST-NO | J Lead | 160 gf | Rectangular Button | 3.5 mm | 2.9 mm |
