12-26 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

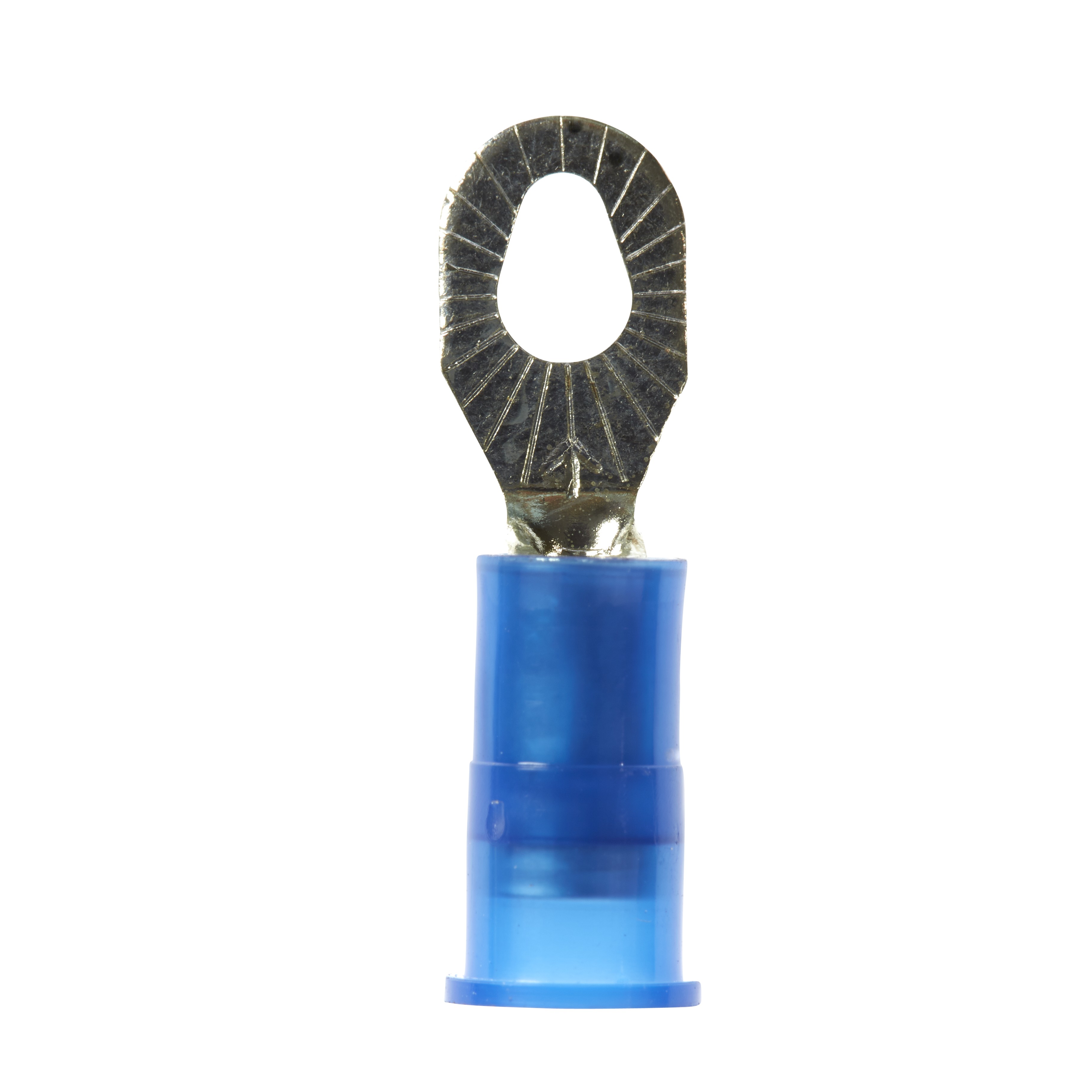

16-14 AWG VINYL INSULATED BUTTED SEAM MULTI-STUD RING TONGUE T
| Part | Material - Insulation | Mounting Type | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Color | Thickness | Thickness | Termination | Terminal Type | Wire Gauge [Min] | Wire Gauge [Max] | Features | Contact Material | Contact Finish | Width - Outer Edges [x] | Width - Outer Edges [x] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M Electronic Specialty | Vinyl | Free Hanging (In-Line) | 23.88 mm | 0.94 in | 2 Stud 4 Stud 6 Stud | Blue | 0.76 mm | 0.03 in | Crimp | Multi-Stud | 14 AWG | 16 AWG | Butted Seam | Copper ETP | Tin | 7.11 mm | 0.28 in | Insulated |
 3M Electronic Specialty | Nylon Polyamide (PA) | Free Hanging (In-Line) | 24.13 mm | 0.95 " | 2 Stud 4 Stud 6 Stud | Blue | 0.76 mm | 0.03 in | Crimp | Multi-Stud | 14 AWG | 16 AWG | Copper ETP | Tin | 7.11 mm | 0.28 in | Insulated |
