49 Series

Catalog

FIXED IND 10UH 5.1A 21 MOHM SMD

Part	Q @ Freq	Tolerance	Inductance Frequency - Test	Inductance	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency - Self Resonant	Mounting Type	Current Rating (Amps)	Shielding	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]
Murata Electronics 49100SC	1 MHz 43	20 %	10 kHz	10 µH	Wirewound	12.2 mm	0.48 in	12.2 mm	0.48 in	21 mOhm	8 mm	0.315 in	19 MHz	Surface Mount	5.1 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C
Murata Electronics 49680SC	1 MHz 47	20 %	10 kHz	68 µH	Wirewound	12.2 mm	0.48 in	12.2 mm	0.48 in	143 mOhm	8 mm	0.315 in	7 MHz	Surface Mount	2 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C	100 mOhm
Murata Electronics 49471SC	37 800 kHz	20 %	10 kHz	470 µH	Wirewound	12.2 mm	0.48 in	12.2 mm	0.48 in	810 mOhm	8 mm	0.315 in	4 MHz	Surface Mount	750 mA	Shielded	Nonstandard 4 Lead	85 °C	-40 C
Murata Electronics 49102SC	26 800 kHz	20 %	10 kHz	1 mH	Wirewound	12.2 mm	0.48 in	12.2 mm	0.48 in	1.5 Ohm	8 mm	0.315 in	3 MHz	Surface Mount	0.5 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C
Murata Electronics 49220SC		20 %	10 kHz	22 µH	Wirewound	12.2 mm	0.48 in	12.2 mm	0.48 in	42 mOhm	8 mm	0.315 in	12 MHz	Surface Mount	3.1 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C

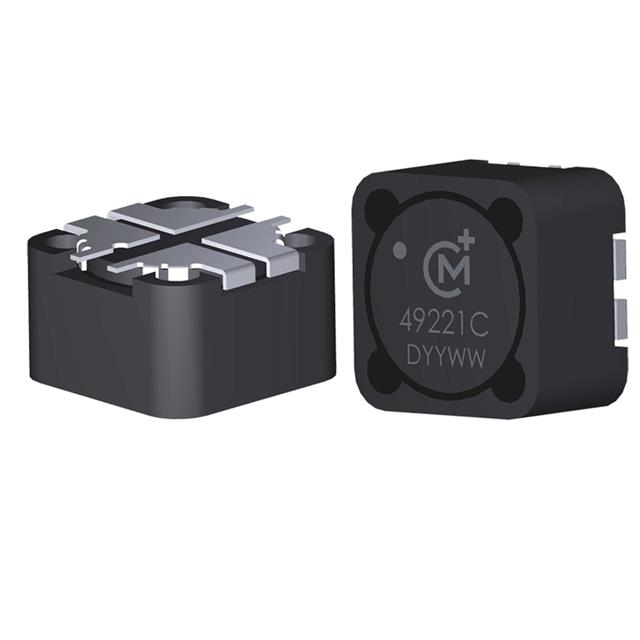

Murata Electronics 49221C			10 kHz	220 µH	Wirewound	12 mm	0.472 "	12 mm	0.472 in	805 mOhm	8 mm	0.315 in		Surface Mount	950 mA	Shielded	Nonstandard 4 Lead	85 °C	-40 C
Murata Electronics 49221SC		20 %	10 kHz	220 µH	Wirewound	12.2 mm	0.48 in	12.2 mm	0.48 in	380 mOhm	8 mm	0.315 in	4 MHz	Surface Mount	1.1 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C		800 kHz	36
Murata Electronics 492R2SC	1 MHz 45	30 %	10 kHz	2.2 µH	Wirewound	12.2 mm	0.48 in	12.2 mm	0.48 in	8 mOhm	8 mm	0.315 in	48 MHz	Surface Mount	9.8 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C
Murata Electronics 494R7SC		30 %	10 kHz	4.7 ÁH	Wirewound	12.2 mm	0.48 in	12.2 mm	0.48 in	12 mOhm	8 mm	0.315 in	32 MHz	Surface Mount	7.7 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C		1 MHz	42
Murata Electronics 496R8C			10 kHz	6.8 µH	Wirewound	12 mm	0.472 "	12 mm	0.472 in		8 mm	0.315 in		Surface Mount	5.4 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C	27 mOhm
