90148 Series
Manufacturer: Molex
Beta
⌘K
CONN SOCKET STRIP RCP 10 POS 2.54MM SOLDER RA SIDE ENTRY THRU-HOLE C-GRID TUBE
| Part | Applications | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Insulation Material | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Voltage Rating | Mounting Type | Fastening Type | Insulation Color | Termination | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Contact Type | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Automotive General Purpose Lighting Medical Telecommunications | Phosphor Bronze | 40 Áin | 1.02 Ám | Square | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 3 A | 0.13 in | 3.3 mm | 350 VDC | Right Angle Through Hole | Push-Pull | Black | Solder | 0.1 " | 2.54 mm | 0.114 in | 2.9 mm | 10 | 1 | -55 C | 105 ░C | All | Female Socket | Tin | 1.02 µm | 40 µin | Receptacle |
 Molex | ||||||||||||||||||||||||||||
 Molex | ||||||||||||||||||||||||||||

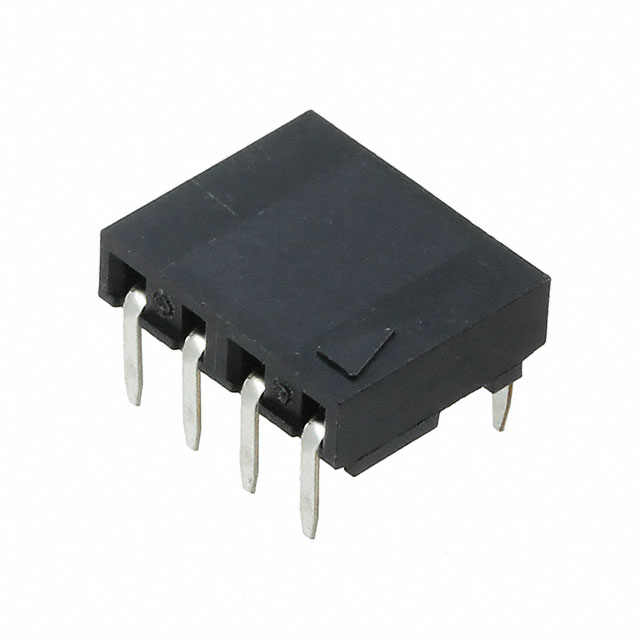

 Molex | Automotive General Purpose Lighting Medical Telecommunications | Phosphor Bronze | 40 Áin | 1.02 Ám | Square | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 3 A | 0.13 in | 3.3 mm | 350 VDC | Right Angle Through Hole | Push-Pull | Black | Solder | 0.1 " | 2.54 mm | 0.114 in | 2.9 mm | 4 | 1 | -55 C | 105 ░C | All | Female Socket | Tin | 1.02 µm | 40 µin | Receptacle |
