IRH-12 Series

Isolated DC/DC Converters - Through Hole 16V-160VIN 12VOUT 250W

Manufacturer: Murata Power Solutions Inc.

Catalog

Isolated DC/DC Converters - Through Hole 16V-160VIN 12VOUT 250W

Catalog

Isolated DC/DC Converters - Through Hole 16V-160VIN 12VOUT 250W

Part	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Output 1	Voltage - Input (Max) [Max]	Package / Case	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Input (Min) [Min]	Supplier Device Package	Number of Outputs	Mounting Type	Efficiency	Control Features	Approval Agency
Murata Power Solutions Inc. IRH-12/12.5-T110NVF-C	ITE (Commercial) Railway	2.2 in	12.7 "	58.2 mm	55.9 mm	12.7 mm	2.29 in	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	85 °C	-40 °C	150 W	12 V	160 V	Half Brick	12.5 A	3000 V	57.6 V	Half Brick	1	Through Hole
Murata Power Solutions Inc. IRH-12/21-W80NB1-C	ITE (Commercial) Railway	2.39 in	0.55 in	63.2 mm	60.7 mm	14 mm	2.49 "	Adjustable Output Baseplate Remote On/Off Remote Sense	Isolated Module	85 °C	-40 °C	252 W	12 V	160 V	Half Brick	21 A	4.242 kV	16 V	Half Brick	1	Through Hole	91 %	Active Low Enable	CE cURus UL
Murata Power Solutions Inc. IRH-12/12.5-T110P-C	ITE (Commercial) Railway	2.28 in	12.7 "	61 mm	57.9 mm	12.7 mm	2.4 in	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	85 °C	-40 °C	150 W	12 V	160 V	Half Brick	12.5 A	3000 V	57.6 V	Half Brick	1	Through Hole

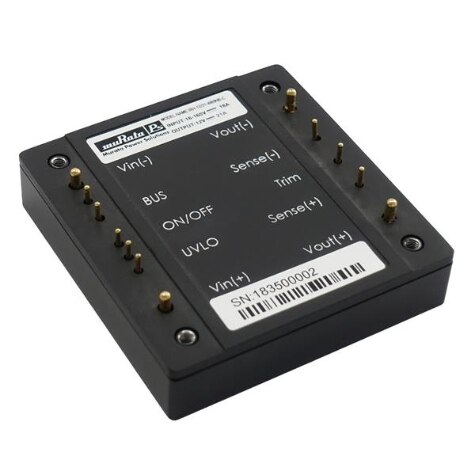

Murata Power Solutions Inc. IRH-12/21-W80NB-C	ITE (Commercial) Railway	2.39 in	0.55 in	63.2 mm	60.7 mm	14 mm	2.49 "	Adjustable Output Baseplate Remote On/Off Remote Sense	Isolated Module	85 °C	-40 °C	252 W	12 V	160 V	Half Brick	21 A	4.242 kV	16 V	Half Brick	1	Through Hole	91 %	Active Low Enable	CE cURus UL
Murata Power Solutions Inc. IRH-12/12.5-T110NF-C	ITE (Commercial) Railway	2.2 in	12.7 "	58.2 mm	55.9 mm	12.7 mm	2.29 in	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	85 °C	-40 °C	150 W	12 V	160 V	Half Brick	12.5 A	3000 V	57.6 V	Half Brick	1	Through Hole
Murata Power Solutions Inc. IRH-12/12.5-T110PF-C	ITE (Commercial) Railway	2.2 in	12.7 "	58.2 mm	55.9 mm	12.7 mm	2.29 in	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	85 °C	-40 °C	150 W	12 V	160 V	Half Brick	12.5 A	3000 V	57.6 V	Half Brick	1	Through Hole
Murata Power Solutions Inc. IRH-12/12.5-T110PVF-C	ITE (Commercial) Railway	2.2 in	12.7 "	58.2 mm	55.9 mm	12.7 mm	2.29 in	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	85 °C	-40 °C	150 W	12 V	160 V	Half Brick	12.5 A	3000 V	57.6 V	Half Brick	1	Through Hole
