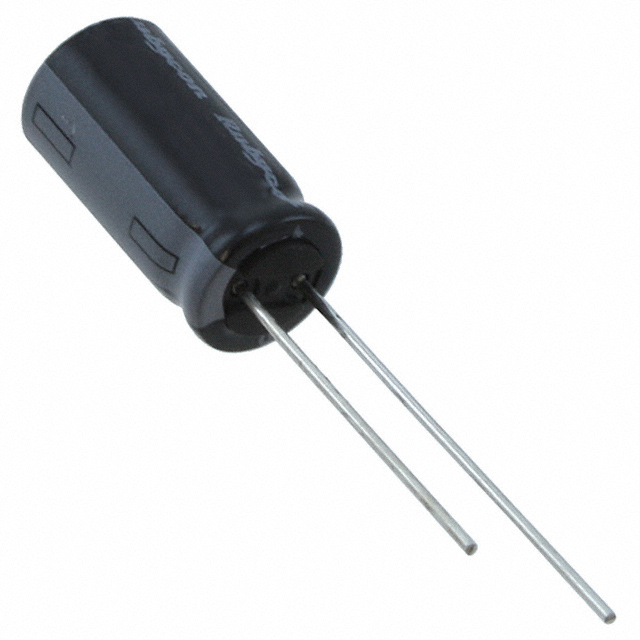

YXG Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED LOW IMPEDANCE ELECTROLYTIC CAPACITORS

Part	Package / Case	Impedance	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Voltage - Rated	Applications	Capacitance	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Mounting Type	Tolerance	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Rubycon 6.3YXG1000MEFC8X16	Can Radial	87 mOhms	Polar	0.315 in	8 mm	4000 Hrs	6.3 VDC	General Purpose	1000 µF	504 mA	-40 C	105 ░C	0.138 in	3.5 mm	Through Hole	20 %	840 mA	17.5 mm	0.689 in
Rubycon 35YXG220MEFC10X12.5	Can Radial	80 mOhms	Polar	0.394 in	10 mm	5000 Hrs	35 V	General Purpose	220 µF	432.5 mA	-40 C	105 ░C	0.197 "	5 mm	Through Hole	20 %				14 mm	0.551 in
