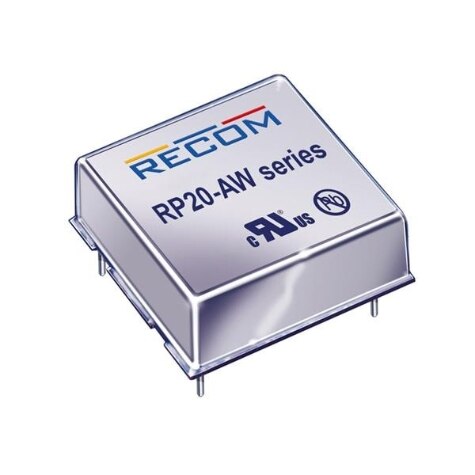

RP20-AW Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W DC/DC 1.6KV REG 36-75VIN 5VOUT
| Part | Efficiency | Voltage - Output 1 | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Power (Watts) | Package / Case | Number of Outputs | Features | Applications | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Control Features | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 89 % | 5 V | 1.6 kV | 90 °C | -40 C | Isolated Module | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 20 W | 6-SIP Module 5 Leads | 1 | OCP OVP SCP UVLO | ITE (Commercial) | 4 A | 75 V | 36 V | ||||
 Recom Power | 89 % | 5 V | 1.6 kV | 90 °C | -40 C | Isolated Module | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 20 W | 6-SIP Module | 1 | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 4 A | 36 V | 9 V | Active High Enable | |||
Recom Power | 89 % | 5 V | 1.6 kV | 90 °C | -40 C | Isolated Module | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 20 W | 6-SIP Module | 1 | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 4 A | 75 V | 36 V | Active High Enable | |||
Recom Power | 87 % | 3.3 V | 1.6 kV | 90 °C | -40 C | Isolated Module | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 20 W | 6-SIP Module 4 Leads | 1 | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 4.5 A | 75 V | 36 V | ||||
 Recom Power | 89 % | 12 V | 1.6 kV | 90 °C | -40 C | Isolated Module | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 20 W | 6-SIP Module 5 Leads | 2 | OCP OVP SCP UVLO | ITE (Commercial) | 36 V | 9 V | -12 V | 833 mA | 833 mA | ||
Recom Power | 90 % | 15 V | 1.6 kV | 90 °C | -40 C | Isolated Module | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 20 W | 6-SIP Module | 2 | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 75 V | 36 V | Active Low Enable | -15 V | 677 mA | 677 mA | |
Recom Power | 86 % | 3.3 V | 1.6 kV | 90 °C | -40 C | Isolated Module | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 20 W | 6-SIP Module 4 Leads | 1 | OCP OVP SCP UVLO | ITE (Commercial) | 4.5 A | 36 V | 9 V | ||||
Recom Power | 89 % | 12 V | 1.6 kV | 90 °C | -40 C | Isolated Module | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 20 W | 6-SIP Module 5 Leads | 2 | OCP OVP SCP UVLO | ITE (Commercial) | 36 V | 9 V | -12 V | 833 mA | 833 mA | ||
Recom Power | 89 % | 12 V | 1.6 kV | 90 °C | -40 C | Isolated Module | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 20 W | 6-SIP Module | 1 | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 1.67 A | 75 V | 36 V | Active Low Enable | |||
Recom Power | 89 % | 12 V | 1.6 kV | 90 °C | -40 C | Isolated Module | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | Through Hole | 20 W | 6-SIP Module | 2 | OCP OVP Remote On/Off SCP UVLO | ITE (Commercial) | 36 V | 9 V | Active Low Enable | -12 V | 833 mA | 833 mA |
