6306FE Series
Manufacturer: Belden Inc.
Beta
⌘K

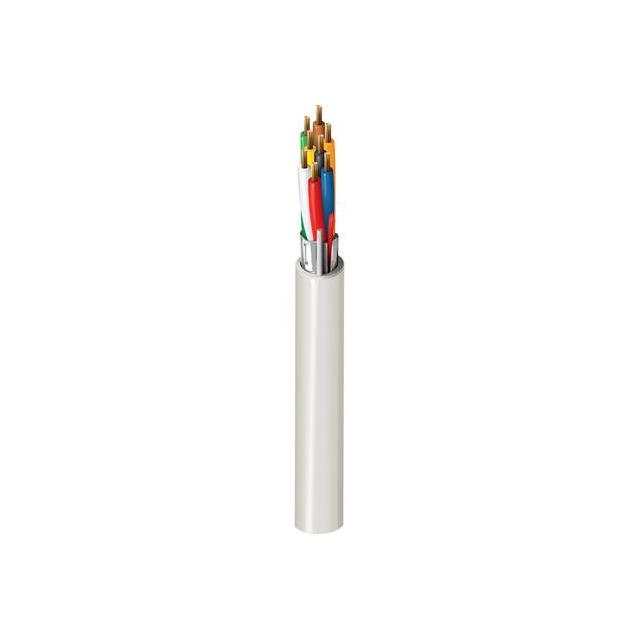

CABLE 8COND 18AWG NATURAL
| Part | Shield Coverage | Shield Material | Wire Gauge | Shield Type | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Usage | Conductor Insulation | Voltage | Jacket (Insulation) Material | Conductor Material | Number of Conductors [custom] | Features | Ratings | Jacket Color | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 18 AWG | Foil | 0.381 mm | 0.015 in | Security Sound | Low Smoke Poly-Vinyl Chloride (LSPVC) | 300 VDC | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | Copper Bare | 8 | Drain Wire Rip Cord | UL Style CMP | Natural | Multi-Conductor | 6.25 mm | 0.246 in | 304.8 m | 1000 ft | 75 ░C | 0 °C | 26 AWG | 7 |
