82841 Series
Manufacturer: Belden Inc.
Beta
⌘K

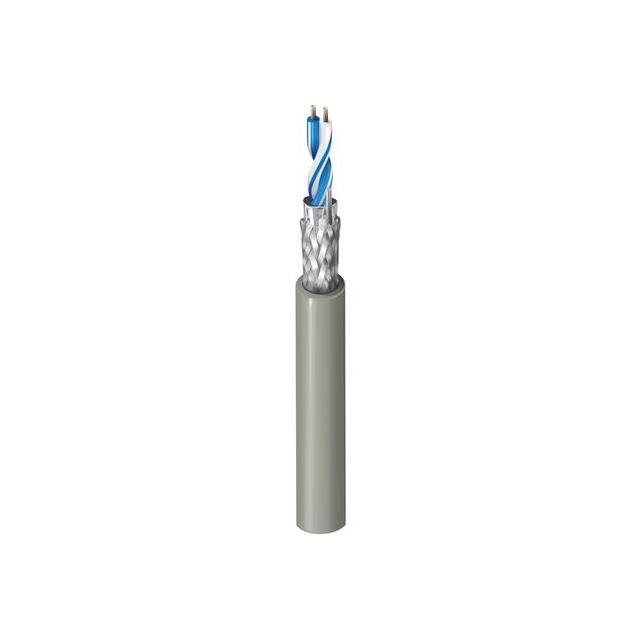

CABLE 2COND 24AWG NAT SHLD
| Part | Shield Material | Shield Coverage | Voltage | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Features | Wire Gauge | Jacket Color | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Insulation | Number of Conductors | Shield Type | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | 300 VDC | Copper Tinned | 7 | 32 AWG | 152.4 m | 500 ft | Drain Wire | 24 AWG | Natural | 0.381 mm | 0.015 in | Computer | 75 ░C | 0 °C | 5.18 mm | 0.204 " | Multi-Conductor | Foam Fluorinated Ethylene-Propylene (FFEP) | 2 | Braid Foil | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
Belden Inc. | Aluminum Copper Tinned | 90 % 100 % | 300 VDC | Copper Tinned | 7 | 32 AWG | Drain Wire | 24 AWG | Natural | 0.381 mm | 0.015 in | Computer | 75 ░C | 0 °C | 5.18 mm | 0.204 " | Multi-Conductor | Foam Fluorinated Ethylene-Propylene (FFEP) | 2 | Braid Foil | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
