A31ASP Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPST 80A 24V
| Part | Coil Power | Contact Material | Coil Resistance | Switching Voltage [Max] | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Operate Time | Features | Coil Type | Release Time | Termination Style | Must Operate Voltage | Must Release Voltage | Coil Voltage | Contact Form | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

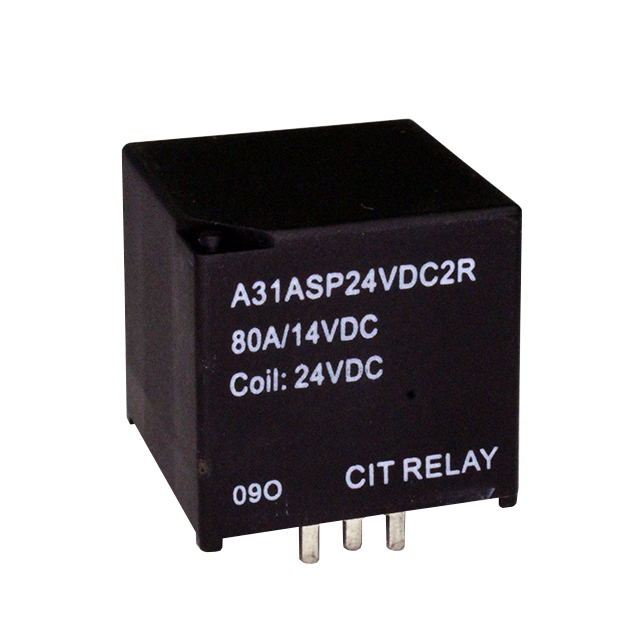

 CIT Relay and Switch | 1.8 W | Silver Tin Oxide Indium Oxide (AgSnOInO) | 320 Ohms | 75 VDC | 80 A | 125 °C | -40 C | 0.075 A | 7 ms | Resistor Sealed - Fully | Non Latching | 5 ms | PC Pin | 16.8 VDC | 2.4 VDC | 24 VDC | SPST-NO (1 Form A) | Through Hole |

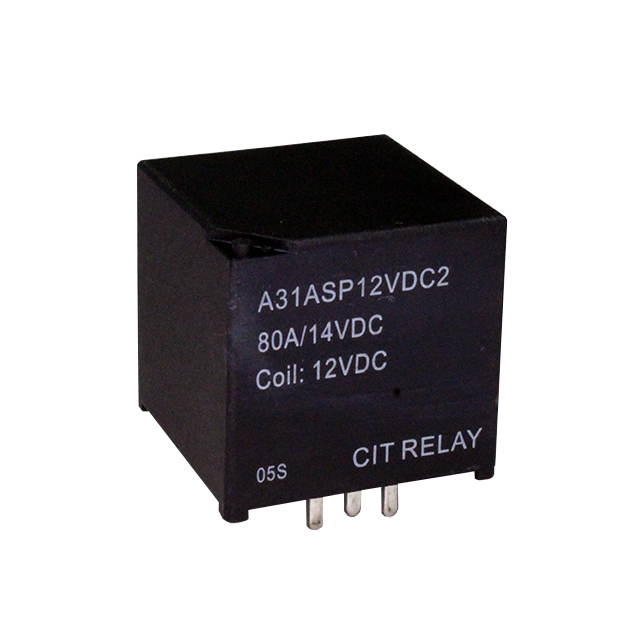

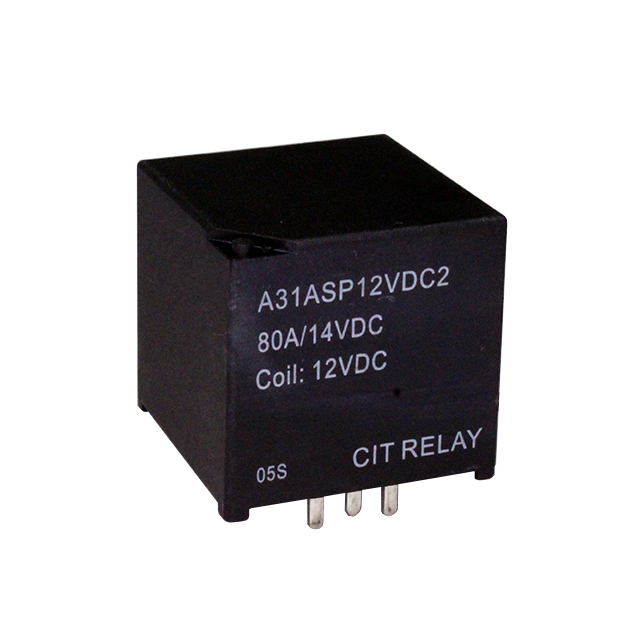

 CIT Relay and Switch | 1.8 W | Silver Tin Oxide Indium Oxide (AgSnOInO) | 80 Ohms | 75 VDC | 80 A | 125 °C | -40 C | 0.15 A | 7 ms | Diode Sealed - Fully | Non Latching | 5 ms | PC Pin | 8.4 VDC | 1.2 VDC | 12 VDC | SPST-NO (1 Form A) | Through Hole |
 CIT Relay and Switch | 1.8 W | Silver Tin Oxide Indium Oxide (AgSnOInO) | 80 Ohms | 75 VDC | 80 A | 125 °C | -40 C | 0.15 A | 7 ms | Sealed - Fully | Non Latching | 5 ms | PC Pin | 8.4 VDC | 1.2 VDC | 12 VDC | SPST-NO (1 Form A) | Through Hole |
