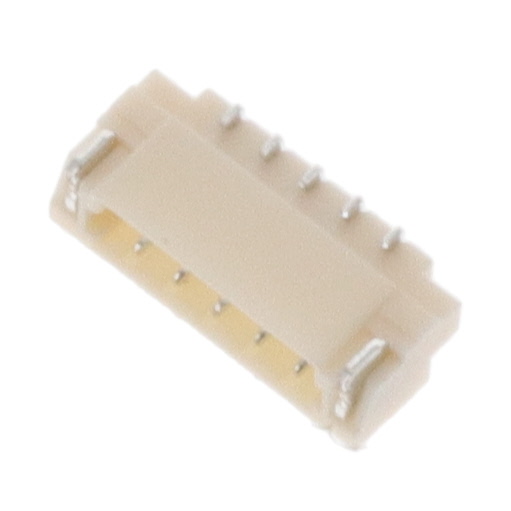

SM05B-SU Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 5POS 0.8MM
| Part | Termination | Insulation Material | Contact Material | Number of Rows | Voltage Rating | Contact Shape | Current Rating (Amps) | Style | Number of Positions | Mounting Type | Contact Type | Insulation Color | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Features | Fastening Type | Number of Positions Loaded | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Connector Type | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Solder | Nylon Polyamide (PA) | Copper Alloy | 1 | 30 VDC | Rectangular | 0.2 A 0.5 A | Board to Cable/Wire | 5 | Right Angle Surface Mount | Outer Shroud Contact | Natural | Shrouded - 4 Wall | 85 °C | -25 °C | Tin | Solder Retention | Push-Pull | All | UL94 V-0 | 0.069 in | 1.75 mm | Header | 0.8 mm | 0.031 in |
