IL-Z-3 Series

Catalog

CONN HEADER R/A 3POS 1.25MM

Part	Pitch - Mating	Pitch - Mating	Shrouding	Number of Rows	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Connector Type	Voltage Rating	Termination	Contact Shape	Style	Contact Type	Number of Positions Loaded	Contact Material	Mounting Type	Insulation Material	Insulation Color	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Finish - Post	Fastening Type	Features	Insulation Height [z]	Insulation Height [z]	Note	Contact Termination	Pitch	Pitch

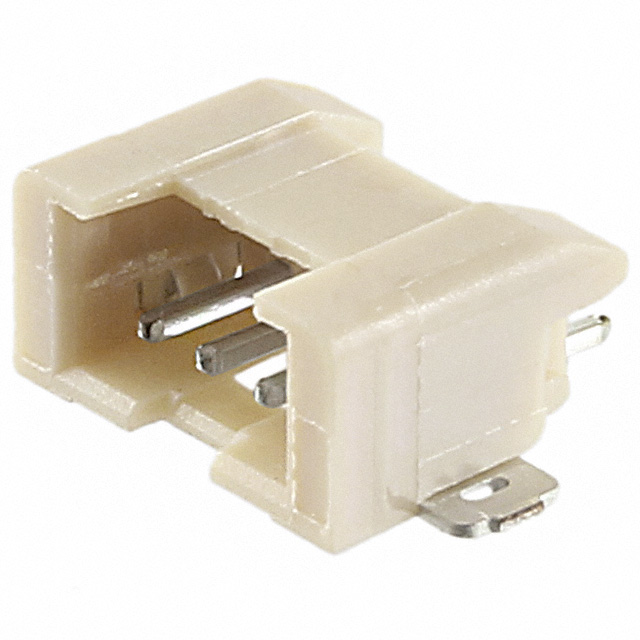

JAE Electronics IL-Z-3P-S125L3-E	0.049 in	1.25 mm	Shrouded - 4 Wall	1	UL94 V-0	1.7 mm	0.067 in	Header	200 V	Solder	Square	Board to Cable/Wire	Male Pin	All	Brass	Right Angle Through Hole	Nylon 6/6 Polyamide (PA66)	Brown	0.128 in	3.25 mm	70 °C	-40 C	0.108 in	2.75 mm	1 A	Tin	Push-Pull
JAE Electronics IL-Z-3PL-SMTYE	0.049 in	1.25 mm	Shrouded - 4 Wall	1	UL94 V-0			Header	200 V	Solder	Square	Board to Cable/Wire	Male Pin	All	Brass	Right Angle Surface Mount	Polyphenylene Sulfide (PPS)	Beige			70 °C	-40 C	0.108 in	2.75 mm	1 A	Tin	Push-Pull	Solder Retention	3.46 mm	0.136 in
JAE Electronics IL-Z-3S-S125C3				1				Receptacle					Female Socket			Free Hanging (In-Line)	Glass Filled Nylon 6/6 Polyamide (PA66)				70 °C	-40 C					Friction Lock				Contacts Not Included	Crimp	0.049 in	1.25 mm
JAE Electronics IL-Z-3PL-SMTYE-R1500	0.049 in	1.25 mm	Shrouded - 4 Wall	1	UL94 V-0			Header	200 V	Solder	Square	Board to Cable/Wire	Male Pin	All	Brass	Right Angle Surface Mount	Polyphenylene Sulfide (PPS)	Beige			70 °C	-40 C	0.108 in	2.75 mm	1 A	Tin	Friction Lock	Solder Retention	3.46 mm	0.136 in
