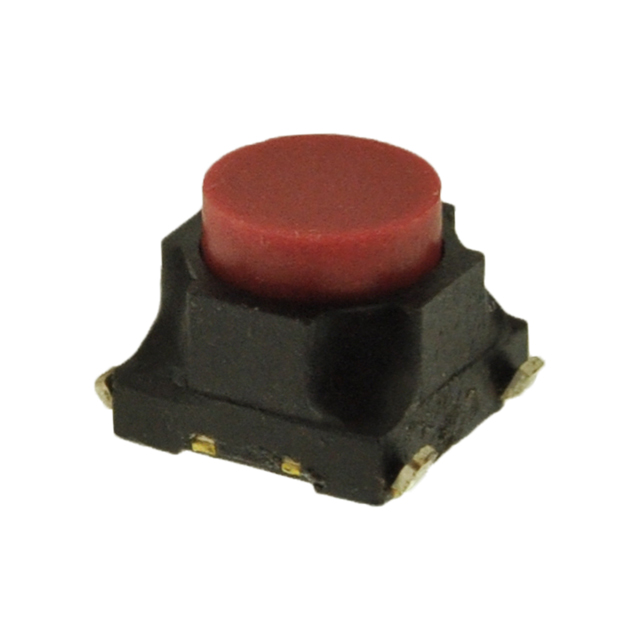

TL9100 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Switch Travel | Contact Rating @ Voltage | Operating Force | Actuator Type | Outline [x] | Outline [y] | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Mounting Type | Actuator Orientation | Circuit | Illumination | Actuator Height off PCB, Vertical [z] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | 1.3 mm | 0.05 A 12 VDC | 0.2 kgf | Round Button | 6 mm | 6 mm | 85 °C | -40 C | Off-Mom | Surface Mount | Top Actuated | SPST-NO | Non-Illuminated | 5 mm | Gull Wing |
E-Switch | 30000 Steps | 1.3 mm | 0.05 A 12 VDC | 350 gf | Round Button | 6 mm | 6 mm | 85 °C | -40 C | Off-Mom | Surface Mount | Top Actuated | SPST-NO | Non-Illuminated | 5 mm | Gull Wing |
