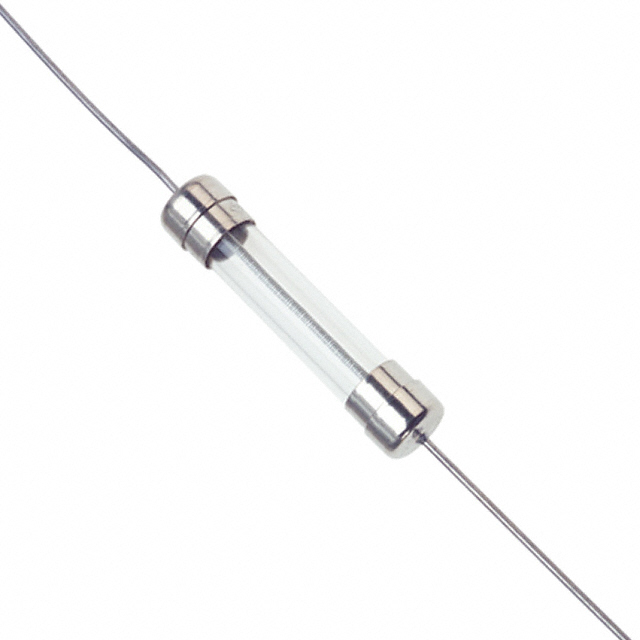

FUSE 250V SB PT 3AG Pb-FREE .400A
Description
AI
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
Beta
⌘K
FUSE 250V SB PT 3AG Pb-FREE .400A
FUSE 250V SB PT 3AG Pb-FREE .400A
| Part | Package / Case [y] | Package / Case | Package / Case [x] | Mounting Type | Breaking Capacity @ Rated Voltage | Response Time | Voltage Rating - AC | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Melting I²t | Operating Temperature [Min] | Operating Temperature [Max] | Fuse Type | Current Rating (Amps) | Approval Agency | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 3AB 3AG | 0.25 " | Through Hole | 35 A | Slow Blow | 250 V | 0.275 in | 1.275 in | 6.99 mm | 32.39 mm | 1.35 I²t | -55 C | 125 °C | Cartridge Glass | 400 mA | CE CSA UL | ||
 LITTELFUSE | 3AB 3AG | 0.25 " | Through Hole | 35 A | Slow Blow | 250 V | 0.275 in | 1.275 in | 6.99 mm | 32.39 mm | 1.35 I²t | -55 C | 125 °C | Cartridge Glass | 400 mA | CE CSA UL | 1.875 Ohms | |
 LITTELFUSE | 3AB 3AG | 0.25 " | Through Hole | 35 A | Slow Blow | 250 V | 0.275 in | 1.275 in | 6.99 mm | 32.39 mm | 1.35 I²t | -55 C | 125 °C | Cartridge Glass | 400 mA | CE CSA UL |
