WLTM0815RLR006F Series

2T WLTM0815 2W 100ppm 6 mOhm ±1.0%

Catalog

2T WLTM0815 2W 100ppm 6 mOhm ±1.0%

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Number of Terminations [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Features	Resistance	Temperature Coefficient	Package / Case
LITTELFUSE WLTM0815RLR006FYR	0.033 in	0.85 mm	1 %	3.8 mm	2.2 mm	0.087 in	0.15 "	0815	2	155 C	-55 C	2 W	Current Sense High Voltage	6 mOhms	100 ppm/°C	0815 Wide 1508 (3720 Metric)

Catalog

2T WLTM0815 2W 100ppm 6 mOhm ±1.0%

Description

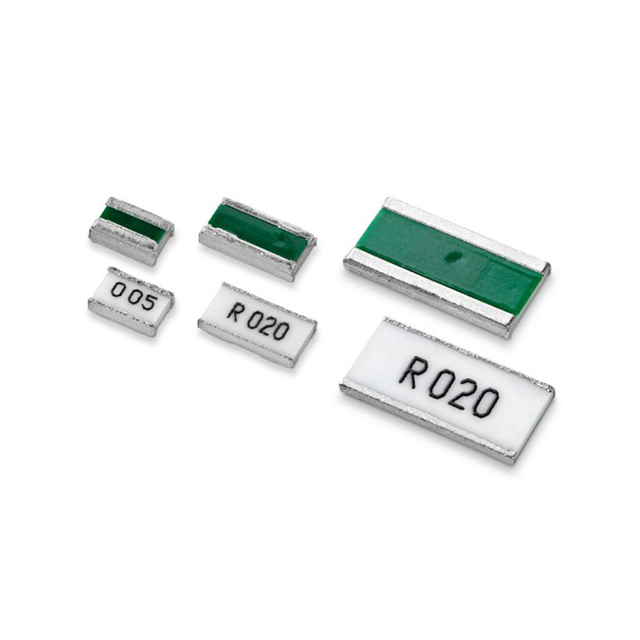

Littelfuse WLTM Series low ohm current sense resistor is designed with long term stability in mind. This series is durable, excels at heat dissipation. The small package is optimal for most applications.
