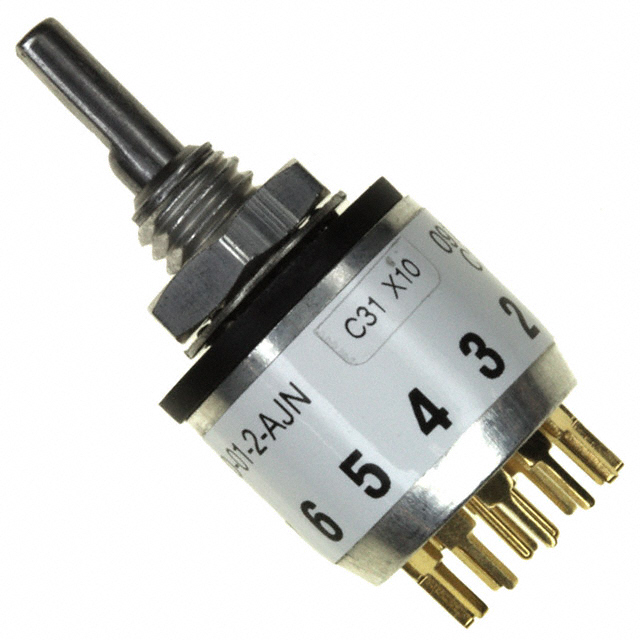

51DP30 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 2-4POS 150MA 115V
| Part | Panel Cutout Dimensions [diameter] | Termination Style | Current Rating (Amps) | Index Stops | Actuator Length [x] | Number of Positions [Min] | Number of Positions [Max] | Number of Poles per Deck | Contact Finish | Depth Behind Panel [custom] | Angle of Throw | Mounting Type | Voltage Rating - AC | Circuit per Deck | Voltage Rating - DC | Actuator Type | Number of Decks [custom] | Contact Timing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 6.45 mm | PC Pin | 150 mA 200 mA | Adjustable | 9.53 mm | 2 | 4 | 3 | Gold | 13.64 mm | 30 ° | Panel Mount Through Hole | 115 V | 3P4T | 28 V | Flatted (3.17mm Dia) | 1 | Shorting (MBB) |
 Grayhill Inc. | PC Pin | 150 mA 200 mA | Adjustable | 9.53 mm | 2 | 6 | 2 | Gold | 13.64 mm | 30 ° | Panel Mount Through Hole | 115 V | DP6T | 28 V | Flatted (3.17mm Dia) | 1 | Non-Shorting (BBM) |
