D4N Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACT DPST-NC 10A 120V
| Part | Operating Force | Actuator Type | Pretravel | Pretravel | Mounting Type | Termination Style | Voltage Rating - AC | Ingress Protection | Current Rating (Amps) | Circuit | Switch Function | Voltage Rating - DC | Operating Position | Operating Position | Operating Temperature [Min] | Operating Temperature [Max] | Mechanical Life | Overtravel [custom] | Overtravel [custom] | Release Force | Electrical Life | Overtravel | Overtravel | Differential Travel | Differential Travel | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 765 gf | Lever Roller | 4 mm | 0.157 in | Chassis Mount | Screw Terminal | 120 V | IP67 - Dust Tight Waterproof | 2.5 A 10 A | DPST-NC | On-Off | 125 VDC | 2.087 in | 53 mm | -30 ░C | 70 °C | ||||||||||

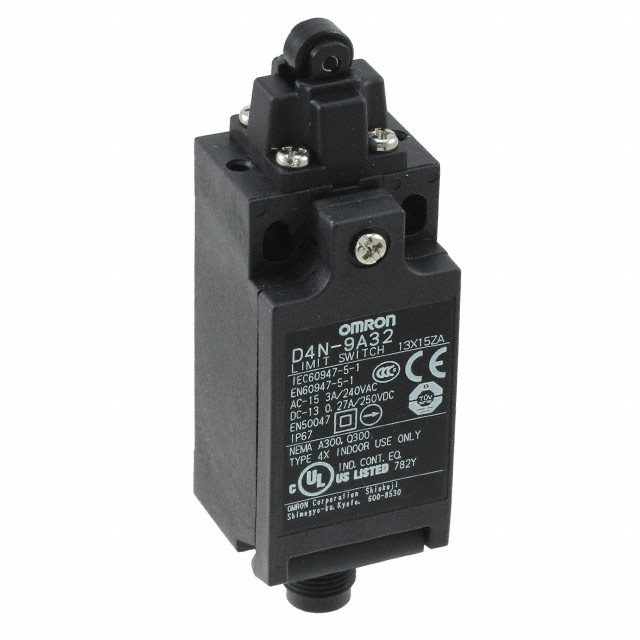

 Omron Automation and Safety | 663 gf | Roller Plunger | 2 mm | 0.08 in | Chassis Mount | Connector | 240 V | IP67 - Dust Tight Waterproof | 3 A 270 mA | DPST-NO/NC | Off-Mom On-Mom | 250 V | 1.125 in | 28.6 mm | -30 ░C | 70 °C | 15000000 Cycles | 0.158 in | 4 mm | 153 gf | 300000 Cycles | |||||
 Omron Automation and Safety | 510 gf | Lever Roller | 4 mm | 0.157 in | Chassis Mount | Screw Terminal | 240 V | IP67 - Dust Tight Waterproof | 3 A 270 mA | 3PST-2NC/1NO | Off-Mom On-Mom | 250 V | 1.457 in | 37 mm | -30 ░C | 70 °C | 15000000 Cycles | 82 gf | 300000 Cycles | 0.197 " | 5 mm | |||||
 Omron Automation and Safety | 459 gf | Side Rotary Adjustable Roller | 18 ° | Chassis Mount | Screw Terminal | 240 V | IP67 - Dust Tight Waterproof | 3 A 270 mA | 3PST-2NC/1NO | Off-Mom On-Mom | 250 V | -30 ░C | 70 °C | 15000000 Cycles | 41 gf | 300000 Cycles | 40 ° | |||||||||

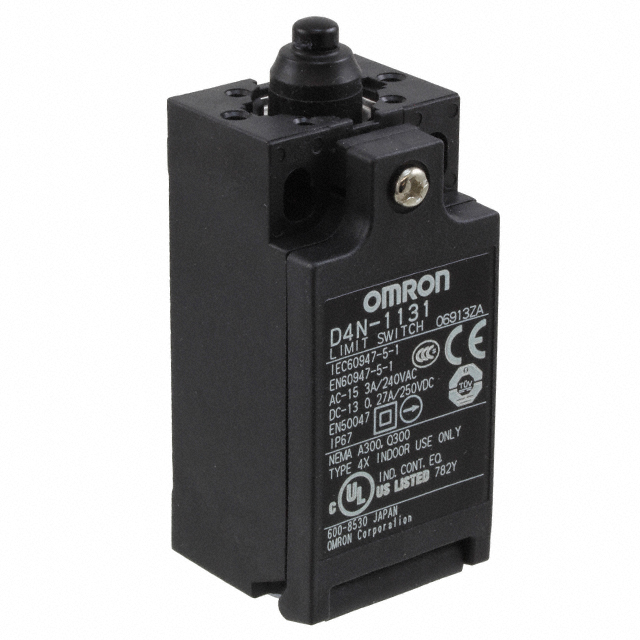

 Omron Automation and Safety | 663 gf | Round (Pin Plunger) | 2 mm | 0.08 in | Chassis Mount | Screw Terminal | 240 V | IP67 - Dust Tight Waterproof | 3 A 270 mA | DPST-NO/NC | Off-Mom On-Mom | 250 V | 0.715 " | 18.2 mm | -30 ░C | 70 °C | 15000000 Cycles | 0.158 in | 4 mm | 153 gf | 300000 Cycles | 1 mm | 0.04 in | |||
 Omron Automation and Safety | 510 gf | Roller Side Rotary | 18 ° | Chassis Mount | Screw Terminal | 240 V | IP67 - Dust Tight Waterproof | 3 A 270 mA | DPST-NO/NC | Off-Mom On-Mom | 250 V | -30 ░C | 70 °C | 15000000 Cycles | 51 gf | 300000 Cycles | 40 ° | 14 ° | Bearing Roller Metal Lever | |||||||
 Omron Automation and Safety | 653 gf | Lever Roller | 18 ° | Chassis Mount | Screw Terminal | 120 V | IP67 - Dust Tight Waterproof | 2.5 A 10 A | DPST-NC | On-Off | 125 VDC | -30 ░C | 70 °C | |||||||||||||
Omron Automation and Safety | 653 gf | Lever Roller | 18 ° | Chassis Mount | Screw Terminal | 120 V | IP67 - Dust Tight Waterproof | 2.5 A 10 A | 3PST-2NC/1NO | Off-Mom On-Mom | 125 VDC | -30 ░C | 70 °C | |||||||||||||
Omron Automation and Safety | 1101 gf | Roller Plunger | 2 mm | 0.08 in | Chassis Mount | Screw Terminal | 120 V | IP67 - Dust Tight Waterproof | 2.5 A 10 A | 3PST-2NC/1NO | Off-Mom On-Mom | 125 VDC | 1.748 in | 44.4 mm | -30 ░C | 70 °C | ||||||||||
 Omron Automation and Safety | 510 gf | Roller Side Rotary | 18 ° | Chassis Mount | Screw Terminal | 240 V | IP67 - Dust Tight Waterproof | 3 A 270 mA | DPST-NO/NC | Off-Mom On-Mom | 250 V | -30 ░C | 70 °C | 15000000 Cycles | 51 gf | 300000 Cycles | 40 ° |
