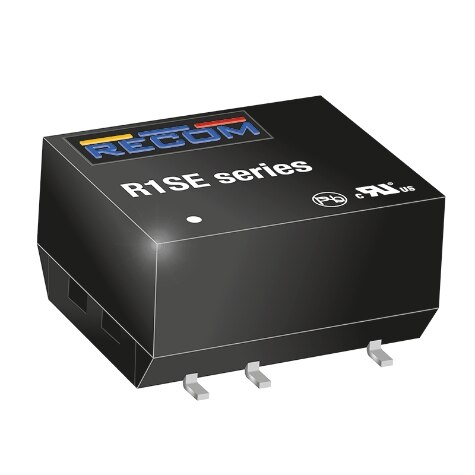

R1SE Series
Isolated DC/DC Converters - SMD 1W 05VIN 05VOUT UNREGULATED 8 PIN
Manufacturer: Recom Power
Catalog
Isolated DC/DC Converters - SMD 1W 05VIN 05VOUT UNREGULATED 8 PIN
Beta
⌘K
Isolated DC/DC Converters - SMD 1W 05VIN 05VOUT UNREGULATED 8 PIN
Isolated DC/DC Converters - SMD 1W 05VIN 05VOUT UNREGULATED 8 PIN
Isolated DC/DC Converters - SMD 1W 05VIN 05VOUT UNREGULATED 8 PIN
| Part | Voltage - Output 1 | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input (Max) [Max] | Features | Voltage - Input (Min) [Min] | Mounting Type | Type | Efficiency | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Applications | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 5 V | 200 mA | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 5.5 V | SCP | 4.5 V | Surface Mount | Isolated Module | 75 % | 1 | 85 °C | -40 C | 1000 V | ITE (Commercial) | 8-SMD Module 5 Leads |
 Recom Power | 5 V | 200 mA | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 5.5 V | SCP | 4.5 V | Surface Mount | Isolated Module | 75 % | 1 | 85 °C | -40 C | 1000 V | ITE (Commercial) | 8-SMD Module |
 Recom Power | 5 V | 200 mA | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 5.5 V | SCP | 4.5 V | Surface Mount | Isolated Module | 75 % | 1 | 85 °C | -40 C | 1000 V | ITE (Commercial) | 8-SMD Module |
Recom Power | 5 V | 200 mA | 0.5 " | 10.7 mm | 0.42 " | 6.7 mm | 12.8 mm | 0.26 in | 5.5 V | SCP | 4.5 V | Surface Mount | Isolated Module | 75 % | 1 | 85 °C | -40 C | 1000 V | ITE (Commercial) | 8-SMD Module 5 Leads |
