CY8C3244 Series
Manufacturer: INFINEON
Beta
⌘K
IC MCU 8BIT 16KB FLASH 48SSOP
| Part | Oscillator Type | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Program Memory Type | Package / Case | Data Converters | Program Memory Size | RAM Size | Connectivity | Speed | Core Size | EEPROM Size [custom] | EEPROM Size [custom] | Supplier Device Package | Number of I/O | Operating Temperature [Max] | Operating Temperature [Min] | Core Processor | Peripherals | Mounting Type | Number of I/O [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Internal | 1.71 V | 5.5 V | FLASH | 48-BSSOP (0.295" 7.50mm Width) | A/D 16x12b D/A 1x8b | 16 KB | 2 K | EBI/EMI I2C LINbus SPI UART/USART USB | 50 MHz | 8-Bit | 512 | 8 | 48-SSOP | 25 | 85 C | -40 ¯C | 8051 | CapSense DMA LCD POR PWM WDT | Surface Mount | |
 INFINEON | Internal | 1.71 V | 5.5 V | FLASH | 100-LQFP | A/D 16x12b D/A 1x8b | 16 KB | 2 K | EBI/EMI I2C LINbus SPI UART/USART USB | 50 MHz | 8-Bit | 512 | 8 | 100-TQFP (14x14) | 62 | 85 C | -40 ¯C | 8051 | CapSense DMA POR PWM WDT | Surface Mount | |

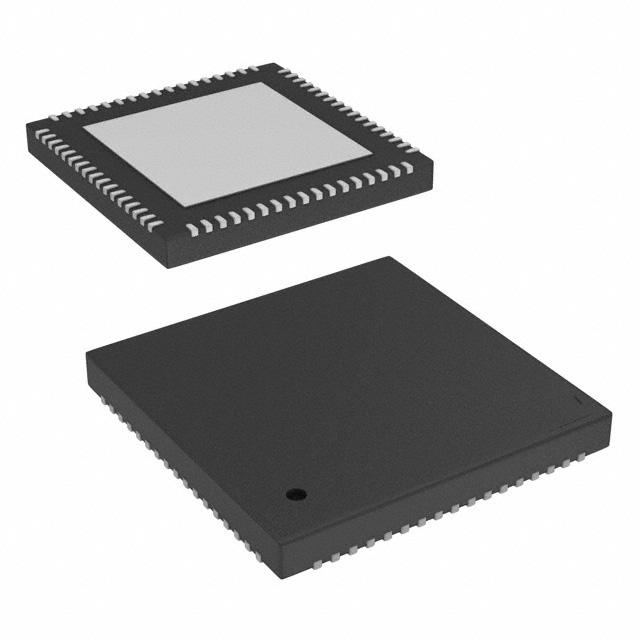

 INFINEON | Internal | 1.71 V | 5.5 V | FLASH | 68-VFQFN Exposed Pad | A/D 16x12b D/A 1x8b | 16 KB | 2 K | EBI/EMI I2C LINbus SPI UART/USART | 50 MHz | 8-Bit | 512 | 8 | 68-QFN (8x8) | 85 C | -40 ¯C | 8051 | CapSense DMA POR PWM WDT | Surface Mount | 38 | |
 INFINEON | Internal | 1.71 V | 5.5 V | FLASH | 48-VFQFN Exposed Pad | A/D 16x12b D/A 1x8b | 16 KB | 2 K | EBI/EMI I2C LINbus SPI UART/USART | 50 MHz | 8-Bit | 512 | 8 | 48-QFN (7x7) | 25 | 85 C | -40 ¯C | 8051 | CapSense DMA LCD POR PWM WDT | Surface Mount | |
INFINEON | Internal | 1.71 V | 5.5 V | FLASH | 48-BSSOP (0.295" 7.50mm Width) | A/D 16x12b D/A 1x8b | 16 KB | 2 K | EBI/EMI I2C LINbus SPI UART/USART | 50 MHz | 8-Bit | 512 | 8 | 48-SSOP | 25 | 85 C | -40 ¯C | 8051 | CapSense DMA LCD POR PWM WDT | Surface Mount | |
 INFINEON | Internal | 1.71 V | 5.5 V | FLASH | 100-LQFP | A/D 16x12b D/A 1x8b | 16 KB | 2 K | EBI/EMI I2C LINbus SPI UART/USART | 50 MHz | 8-Bit | 512 | 8 | 100-TQFP (14x14) | 62 | 85 C | -40 ¯C | 8051 | CapSense DMA POR PWM WDT | Surface Mount | |
 INFINEON | Internal | 1.71 V | 5.5 V | FLASH | 48-BSSOP (0.295" 7.50mm Width) | A/D 16x12b D/A 1x8b | 16 KB | 2 K | EBI/EMI I2C LINbus SPI UART/USART | 50 MHz | 8-Bit | 512 | 8 | 48-SSOP | 25 | 85 C | -40 ¯C | 8051 | CapSense DMA POR PWM WDT | Surface Mount | |
INFINEON | Internal | 1.71 V | 5.5 V | FLASH | 48-VFQFN Exposed Pad | A/D 16x12b D/A 1x8b | 16 KB | 2 K | EBI/EMI I2C LINbus SPI UART/USART | 50 MHz | 8-Bit | 512 | 8 | 48-QFN (7x7) | 25 | 85 C | -40 ¯C | 8051 | CapSense DMA POR PWM WDT | Surface Mount | |
INFINEON | Internal | 1.71 V | 5.5 V | FLASH | 100-LQFP | A/D 16x12b D/A 1x8b | 16 KB | 2 K | EBI/EMI I2C LINbus SPI UART/USART USB | 50 MHz | 8-Bit | 512 | 8 | 100-TQFP (14x14) | 62 | 85 C | -40 ¯C | 8051 | CapSense DMA LCD POR PWM WDT | Surface Mount | |
 INFINEON | Internal | 1.71 V | 5.5 V | FLASH | 48-VFQFN Exposed Pad | A/D 16x12b D/A 1x8b | 16 KB | 2 K | EBI/EMI I2C LINbus SPI UART/USART USB | 50 MHz | 8-Bit | 512 | 8 | 48-QFN (7x7) | 25 | 85 C | -40 ¯C | 8051 | CapSense DMA POR PWM WDT | Surface Mount |
