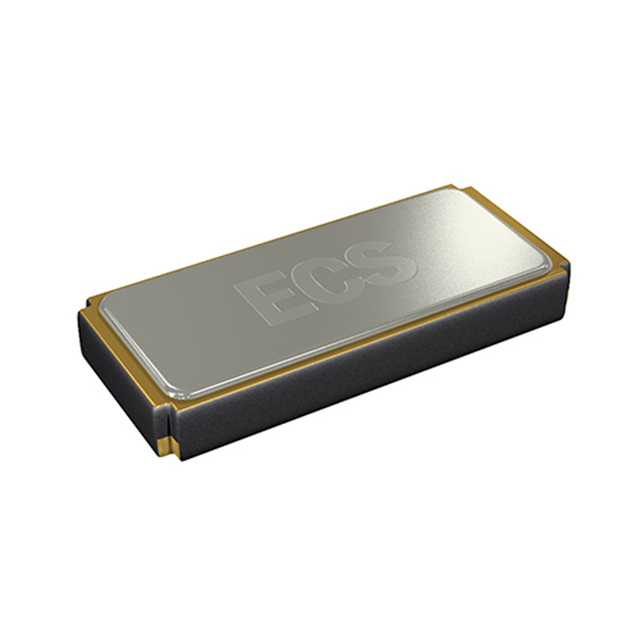

ECX-34Q Series
Manufacturer: ECS Inc.
Beta
⌘K
CRYSTALS 32.768KHZ 7PF 20PPM -40C +125C AEC-Q200
| Part | Ratings | Supplier Device Package [y] | Supplier Device Package | Supplier Device Package [x] | Frequency | Frequency Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Package / Case | Load Capacitance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | ESR (Equivalent Series Resistance) | Operating Mode | Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | AEC-Q200 | 1.5 | 2-SMD | 3.2 | 0.032768 MHz | 20 ppm | 0.035 in | 0.9 mm | Surface Mount | 2-SMD No Lead | 7 pF | 1.5 mm | 3.2 mm | 0.126 in | 0.059 " | 70 kOhms | Fundamental | kHz Crystal (Tuning Fork) | 125 °C | -40 C |
 ECS Inc. | AEC-Q200 | 1.5 | 2-SMD | 3.2 | 0.032768 MHz | 10 ppm | 0.035 in | 0.9 mm | Surface Mount | 2-SMD No Lead | 9 pF | 1.5 mm | 3.2 mm | 0.126 in | 0.059 " | 70 kOhms | Fundamental | kHz Crystal (Tuning Fork) | 85 °C | -40 C |
