HF625 Series

Catalog

CBL RIBN 6COND 0.039 GRAY

Part	Conductor Material	First Conductor Mark	Jacket Color	Wire Gauge	Voltage	Length	Length	Features	Ribbon Width [custom]	Ribbon Width [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Ratings	Number of Conductors	Shielding	Ribbon Thickness	Ribbon Thickness	Length [x]	Length [x]	Number of Conductors [custom]
3M Electronic Specialty HF625/06SF-30M	Copper Tinned	Red	Gray	28 AWG	300 VDC	30 m	98.4 ft	Zippable	6 mm	0.236 in	36 AWG	7 Strands	Flat Cable	Polyolefin (PO)	-40 C	105 ░C	1 mm	0.039 in	UL Style 21682	6	Unshielded	0.89 mm	0.035 in
3M Electronic Specialty HF625/30-30M	Copper Tinned	Red	Gray	28 AWG	300 VDC	30 m	98.4 ft	Zippable	30 mm	1.181 in	36 AWG	7 Strands	Flat Cable	Polyolefin (PO)	-40 C	105 ░C	1 mm	0.039 in	UL Style 21682	30	Unshielded	0.89 mm	0.035 in

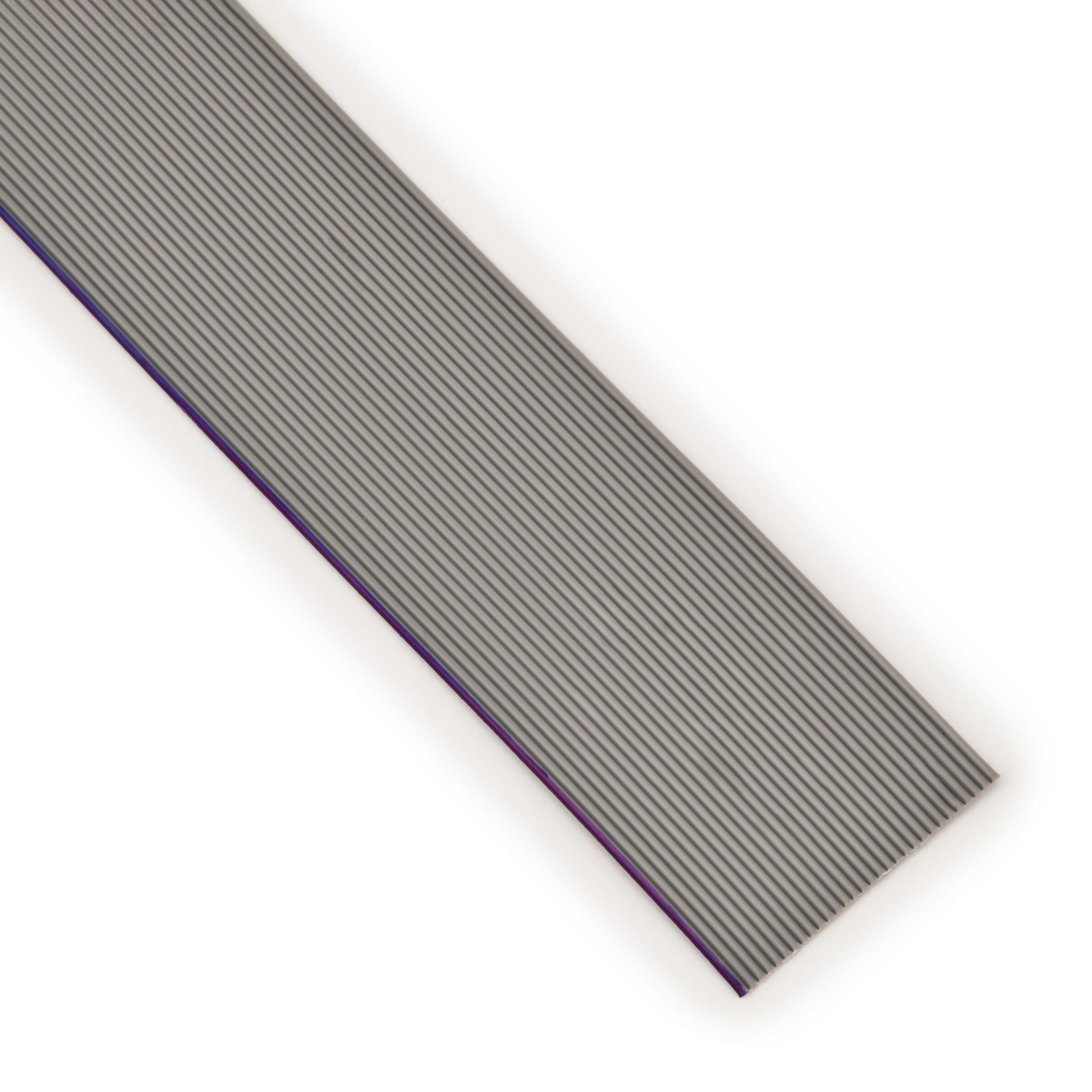

3M Electronic Specialty HF625/44-30M	Copper Tinned	Red	Gray	28 AWG	300 VDC	30 m	98.4 ft	Zippable	43.99 mm	1.732 in	36 AWG	7 Strands	Flat Cable	Polyolefin (PO)	-40 C	105 ░C	1 mm	0.039 in	UL Style 21682	44	Unshielded	0.89 mm	0.035 in
3M Electronic Specialty HF625/50-100M	Copper Tinned	Red	Gray	28 AWG	300 VDC			Zippable	50.01 mm	1.969 in	36 AWG	7 Strands	Flat Cable	Polyolefin (PO)	-40 C	105 ░C	1 mm	0.039 in	UL Style 21682	50	Unshielded	0.89 mm	0.035 in	100 m	328.1 ft
3M Electronic Specialty HF625/34-100M	Copper Tinned	Red	Gray	28 AWG	300 VDC	30 m 50 m	98.4 ft 164 ft	Zippable	34 mm	1.339 in	36 AWG	7 Strands	Flat Cable	Polyolefin (PO)	-40 C	105 ░C	1 mm	0.039 in	UL Style 21682	34	Unshielded	0.89 mm	0.035 in	70 m 100 m	229.7 ft 328.1 ft
3M Electronic Specialty HF625/28SF-100M	Copper Tinned	Red	Gray	28 AWG	300 VDC			Zippable	27.99 mm	1.102 in	36 AWG	7 Strands	Flat Cable	Polyolefin (PO)	-40 C	105 ░C	1 mm	0.039 in	UL Style 21682	28	Unshielded	0.89 mm	0.035 in	100 m	328.1 ft
3M Electronic Specialty HF625/20SF-30M	Copper Tinned	Red	Gray	28 AWG	300 VDC	30 m	98.4 ft	Zippable	20 mm	0.787 in	36 AWG	7 Strands	Flat Cable	Polyolefin (PO)	-40 C	105 ░C	1 mm	0.039 in	UL Style 21682	20	Unshielded	0.89 mm	0.035 in
3M Electronic Specialty HF625/20-100M	Copper Tinned	Red	Gray	28 AWG	300 VDC	30 m 50 m	98.4 ft 164 ft	Zippable	20 mm	0.787 in	36 AWG	7 Strands	Flat Cable	Polyolefin (PO)	-40 C	105 ░C	1 mm	0.039 in	UL Style 21682	20	Unshielded	0.89 mm	0.035 in	70 m 100 m	229.7 ft 328.1 ft
3M Electronic Specialty HF625/30-100M	Copper Tinned	Red	Gray	28 AWG	300 VDC	30 m 50 m	98.4 ft 164 ft	Zippable	30 mm	1.181 in	36 AWG	7 Strands	Flat Cable	Polyolefin (PO)	-40 C	105 ░C	1 mm	0.039 in	UL Style 21682	30	Unshielded	0.89 mm	0.035 in	70 m 100 m	229.7 ft 328.1 ft
3M Electronic Specialty HF625/08-100M	Copper Tinned	Red	Gray	28 AWG	300 VDC	30 m 50 m	98.4 ft 164 ft	Zippable	8 mm	0.315 in	36 AWG	7 Strands	Flat Cable	Polyolefin (PO)	-40 C	105 ░C	1 mm	0.039 in	UL Style 21682		Unshielded	0.89 mm	0.035 in	70 m 100 m	229.7 ft 328.1 ft	8
