FP100R12 Series

Manufacturer: INFINEON

Catalog

LOW POWER ECONO

Part	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Input	IGBT Type	Mounting Type	Power - Max [Max]	Package / Case	Current - Collector (Ic) (Max) [Max]	Configuration	Input Capacitance (Cies) @ Vce	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Vce(on) (Max) @ Vge, Ic	Vce(on) (Max) @ Vge, Ic [Max]
INFINEON FP100R12N3T4PB81BPSA1
INFINEON FP100R12KT4BOSA1	1 mA	1200 V	Standard	Trench Field Stop	Chassis Mount	515 W	Module	100 A	Three Phase Inverter	6.3 nF	-40 C	150 °C	Module	2.2 V
INFINEON FP100R12KT4B11BOSA1	1 mA	1200 V	Standard	Trench Field Stop	Chassis Mount	515 W	Module	100 A	Three Phase Inverter	6.3 nF	-40 C	150 °C	Module	2.1 V

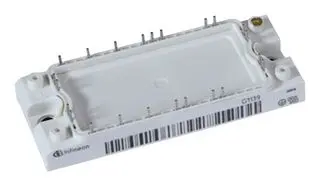

INFINEON FP100R12N2T7BPSA2	10 µA	1200 V	Three Phase Bridge Rectifier	Trench Field Stop	Chassis Mount	20 mW	Module	100 A	Three Phase Inverter	21.7 nF	-40 °C	175 °C	AG-ECONO2B		1.5 V
INFINEON FP100R12KT4PB11BPSA1
INFINEON FP100R12N2T7BPSA1	10 µA	1200 V	Three Phase Bridge Rectifier	Trench Field Stop	Chassis Mount	20 mW	Module	100 A	Three Phase Inverter	21.7 nF	-40 °C	175 °C	AG-ECONO2B		1.5 V

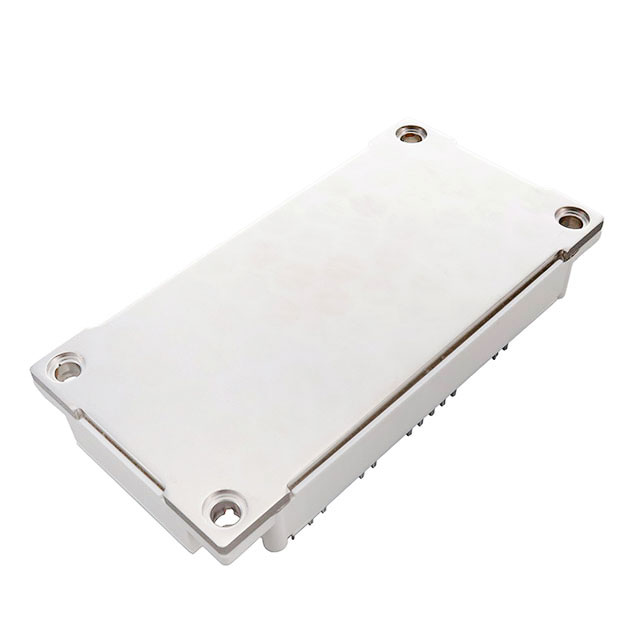

INFINEON FP100R12N3T7B16BPSA1		1200 V	Three Phase Bridge Rectifier	Trench Field Stop				100 A	Three Phase Inverter

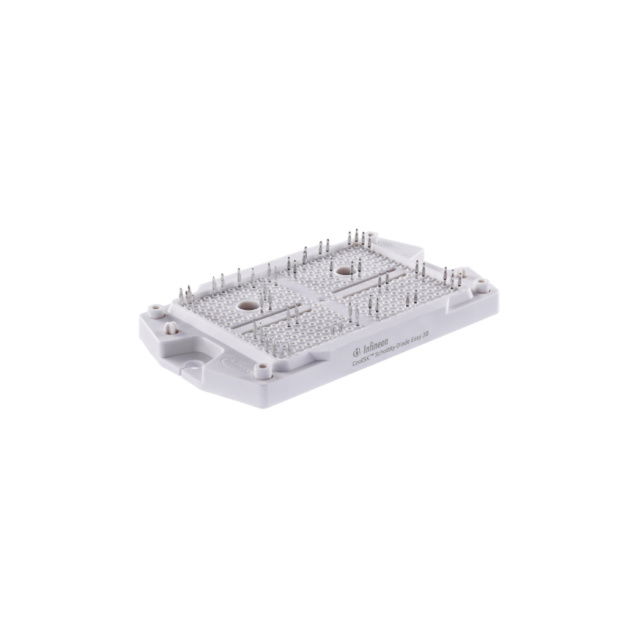

INFINEON FP100R12W3T7B11BPSA1	1 mA	1200 V	Three Phase Bridge Rectifier	Trench Field Stop	Chassis Mount	20 mW	Module	100 A	Three Phase Inverter	21.7 nF	-40 °C	175 °C	AG-EASY3B
