SER Series

Manufacturer: Coilcraft

Catalog

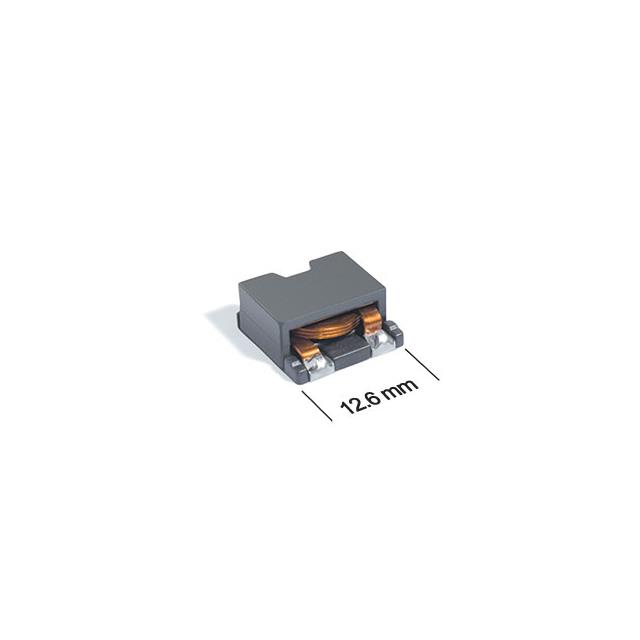

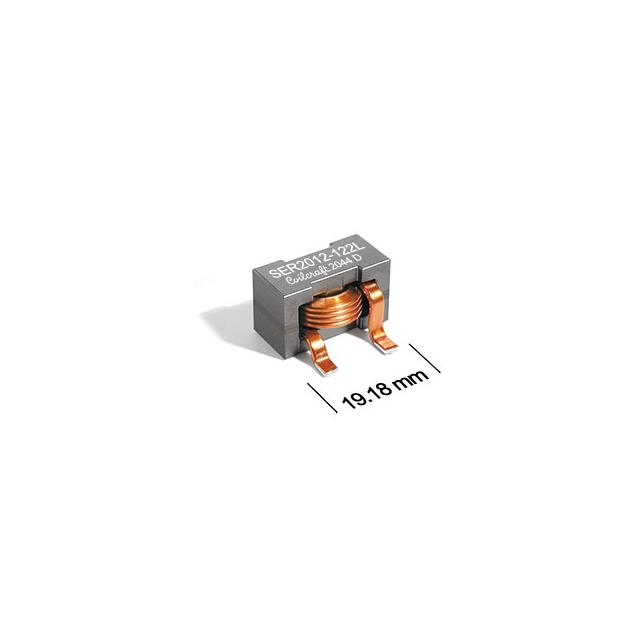

POWER INDUCTORS - SMD 2.7UH SHLD 20% 13A 2.6MOHMS

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Current Rating (Amps)	Mounting Type	Type	Tolerance	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Package / Case	Material - Core	Inductance Frequency - Test	Height - Seated (Max) [Max]	DC Resistance (DCR)	Current - Saturation (Isat)	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Coilcraft SER1360-272KLD	0.5 "	0.496 in	12.6 mm	12.7 mm	AEC-Q200	0.228 "	5.8 mm	2.6 mOhm	42 MHz	13 A	Surface Mount	Wirewound	10 %	2.7 µH	85 °C	-40 C	Shielded	Nonstandard	Ferrite	100 kHz
Coilcraft SER2009-301MLD	0.755 in	0.365 in	9.27 mm	19.18 mm	AEC-Q200	0.34 in	8.64 mm	0.74 mOhm	550 MHz	54 A	Surface Mount	Wirewound	20 %	300 nH	85 °C	-40 C	Shielded	Nonstandard	Ferrite	100 kHz
Coilcraft SER2013-472MLD	0.755 in	0.365 in	9.27 mm	19.18 mm	AEC-Q200		0.51 in		30 MHz	30 A	Surface Mount	Wirewound	20 %	4.7 ÁH	85 °C	-40 C	Shielded	Nonstandard	Ferrite	100 kHz	12.95 mm	1.82 mOhm	18 A
Coilcraft SER2918H-682KL	1.1 in	1.098 in		27.94 mm	AEC-Q200	0.7 "	17.78 mm	2.86 mOhm	25 MHz	20 A	Surface Mount		10 %	6.8 µH	125 °C	-40 C	Shielded	Nonstandard	Ferrite	500 kHz			42 A	27.9 mm
Coilcraft SER2011-202MLD	0.755 in	0.365 in	9.27 mm	19.18 mm	AEC-Q200			1.34 mOhm	56 MHz	40 A	Surface Mount	Wirewound	20 %	2 µH	85 °C	-40 C	Shielded	Nonstandard	Ferrite	100 kHz			37 A		10.67 mm	0.42 in
