SN74LVU04A-Q1 Series

Automotive 6-ch, 2-V to 5.5-V inverters

Catalog

Automotive 6-ch, 2-V to 5.5-V inverters

Part	Current - Quiescent (Max) [Max]	Input Logic Level - High [custom]	Max Propagation Delay @ V, Max CL	Number of Inputs	Logic Type	Input Logic Level - Low	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Supplier Device Package	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Grade	Package / Case [custom]	Package / Case [custom]	Qualification	Package / Case [x]	Package / Case [y]	Package / Case	Package / Case
Texas Instruments SN74LVU04ARGYR	20 µA	1.7 V	7 ns	1	Inverter	0.3 V	12 mA	12 mA	14-VFQFN Exposed Pad	14-VQFN (3.5x3.5)	Surface Mount	85 °C	-40 °C	6	5.5 V	2 V
Texas Instruments SN74LVU04AQPWRG4Q1	20 µA	1.7 V	7 ns	1	Inverter		12 mA	12 mA	14-TSSOP	14-TSSOP	Surface Mount	125 °C	-40 °C	6	5.5 V	2 V	0.8 V	0.3 V	Automotive	0.173 "	4.4 mm	AEC-Q100
Texas Instruments SN74LVU04ANS
Texas Instruments SN74LVU04ANSR	20 µA	1.7 V	7 ns	1	Inverter	0.3 V	12 mA	12 mA	14-SOIC	14-SO	Surface Mount	85 °C	-40 °C	6	5.5 V	2 V							0.209 "	5.3 mm

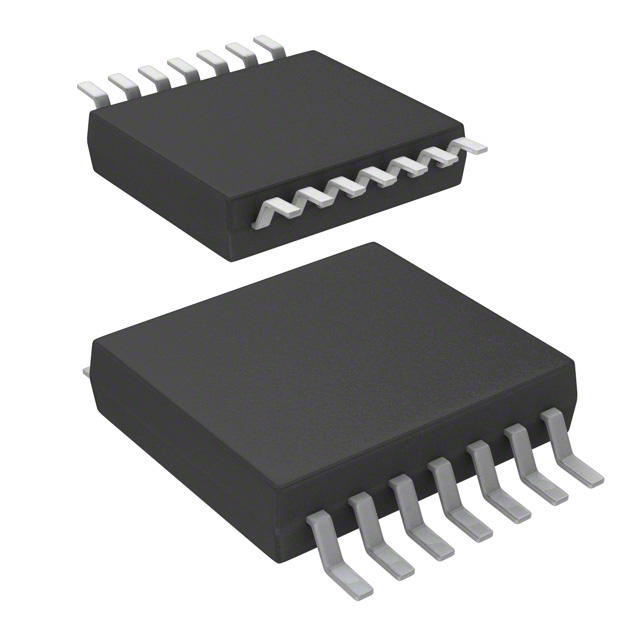

Texas Instruments SN74LVU04ADGVR	20 µA	1.7 V	7 ns	1	Inverter	0.3 V	12 mA	12 mA	14-TFSOP		Surface Mount	85 °C	-40 °C	6	5.5 V	2 V							0.173 in 4.4 mm
Texas Instruments SN74LVU04APWT	20 µA	1.7 V	7 ns	1	Inverter	0.3 V	12 mA	12 mA	14-TSSOP	14-TSSOP	Surface Mount	85 °C	-40 °C	6	5.5 V	2 V				0.173 "	4.4 mm
Texas Instruments SN74LVU04ADBR	20 µA	1.7 V	7 ns	1	Inverter	0.3 V	12 mA	12 mA	14-SSOP	14-SSOP	Surface Mount	85 °C	-40 °C	6	5.5 V	2 V									5.3 mm	0.209 "
Texas Instruments SN74LVU04ADGVRE4	20 µA	1.7 V	7 ns	1	Inverter	0.3 V	12 mA	12 mA	14-TFSOP		Surface Mount	85 °C	-40 °C	6	5.5 V	2 V							0.173 in 4.4 mm
Texas Instruments SN74LVU04APWTE4	20 µA	1.7 V	7 ns	1	Inverter	0.3 V	12 mA	12 mA	14-TSSOP	14-TSSOP	Surface Mount	85 °C	-40 °C	6	5.5 V	2 V				0.173 "	4.4 mm
Texas Instruments SN74LVU04APWR	20 µA	1.7 V	7 ns	1	Inverter	0.3 V	12 mA	12 mA	14-TSSOP	14-TSSOP	Surface Mount	85 °C	-40 °C	6	5.5 V	2 V				0.173 "	4.4 mm

Catalog

Automotive 6-ch, 2-V to 5.5-V inverters

Key Features

• 2-V to 5.5-V VCCOperationUnbuffered OutputsMax tpdof 6.5 ns at 5 VTypical VOLP(Output Ground Bounce)<0.8 V at VCC= 3.3 V, TA= 25°CTypical VOHV(Output VOHUndershoot)>2.3 V at VCC= 3.3 V, TA= 25°CSupports Mixed-Mode Voltage Operation on All PortsLatch-Up Performance Exceeds 250 mA Per JESD 17ESD Protection Exceeds JESD 222000-V Human-Body Model (A114-A)200-V Machine Model (A115-A)1000-V Charged-Device Model (C101)2-V to 5.5-V VCCOperationUnbuffered OutputsMax tpdof 6.5 ns at 5 VTypical VOLP(Output Ground Bounce)<0.8 V at VCC= 3.3 V, TA= 25°CTypical VOHV(Output VOHUndershoot)>2.3 V at VCC= 3.3 V, TA= 25°CSupports Mixed-Mode Voltage Operation on All PortsLatch-Up Performance Exceeds 250 mA Per JESD 17ESD Protection Exceeds JESD 222000-V Human-Body Model (A114-A)200-V Machine Model (A115-A)1000-V Charged-Device Model (C101)

Description

These hex inverters are designed for 2-V to 5.5-V VCCoperation. The ’LVU04A devices contain six independent inverters with unbuffered outputs. These devices perform the Boolean function Y = A\. These hex inverters are designed for 2-V to 5.5-V VCCoperation. The ’LVU04A devices contain six independent inverters with unbuffered outputs. These devices perform the Boolean function Y = A\.
