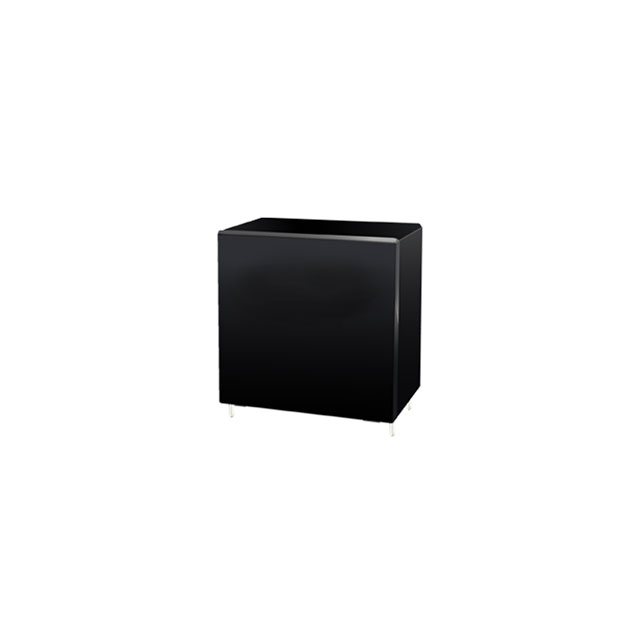

EZP-V Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

Catalog

CAP FILM 65UF 10% 600V RADIAL

...

Part	Package / Case	Capacitance	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lead Spacing	Lead Spacing	Mounting Type	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Applications	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales EZP-V60656MTC	Radial - 4 Leads	65 µF	10 %	1.181 in	30 mm	2.264 in	57.5 mm	52.5 mm	2.067 in	Through Hole	600 V	2.047 in	52 mm	7 mOhms	Long Life Low ESR	PC Pins	-40 °C	105 ░C	Metallized Polypropylene (PP)	Automotive DC Filtering DC Link	AEC-Q200
Panasonic Industrial Automation Sales EZP-V60156LTB	Radial	15 µF	10 %	0.669 in	17 mm	1.614 "	41 mm	37.5 mm	1.476 in	Through Hole	600 V	1.398 in	35.5 mm	12.8 mOhms	Long Life Low ESR	PC Pins	-40 °C	105 ░C	Metallized Polypropylene (PP)	Automotive DC Filtering DC Link	AEC-Q200
Panasonic Industrial Automation Sales EZP-V80506MTC	Radial - 4 Leads	50 µF	10 %	1.181 in	30 mm	2.264 in	57.5 mm	52.5 mm	2.067 in	Through Hole	800 V	2.047 in	52 mm	6.8 mOhms	Long Life Low ESR	PC Pins	-40 °C	105 ░C	Metallized Polypropylene (PP)	Automotive DC Filtering DC Link	AEC-Q200
Panasonic Industrial Automation Sales EZP-V80126LTA	Radial	12 µF	10 %	0.807 in	20.5 mm	1.22 in	31 mm	27.5 mm	1.083 in	Through Hole	800 V	1.673 in	42.5 mm	9.9 mOhms	Long Life Low ESR	PC Pins	-40 °C	105 ░C	Metallized Polypropylene (PP)	DC Filtering DC Link
Panasonic Industrial Automation Sales EZP-V60456MTS	Radial - 4 Leads	45 µF	10 %	0.984 in	25 mm	2.244 in	57 mm	52.5 mm	2.067 in	Through Hole	600 V	1.614 "	41 mm		Long Life Low ESR	PC Pins	-40 °C	105 ░C	Metallized Polypropylene (PP)	Automotive DC Filtering DC Link	AEC-Q200
Panasonic Industrial Automation Sales EZP-V80126LTU	Radial	12 µF	10 %	0.807 in	20.5 mm	1.22 in	31 mm	27.5 mm	1.083 in	Through Hole	800 V	1.673 in	42.5 mm	9.9 mOhms	Long Life Low ESR	PC Pins	-40 °C	105 ░C	Metallized Polypropylene (PP)	Automotive DC Filtering DC Link	AEC-Q200
Panasonic Industrial Automation Sales EZP-V60756MTC	Radial - 4 Leads	75 µF	10 %	1.181 in	30 mm	2.264 in	57.5 mm	52.5 mm	2.067 in	Through Hole	600 V	2.047 in	52 mm	5.5 mOhms	Long Life Low ESR	PC Pins	-40 °C	105 ░C	Metallized Polypropylene (PP)	Automotive DC Filtering DC Link	AEC-Q200
Panasonic Industrial Automation Sales EZP-V80256MTC	Radial - 4 Leads	25 µF	10 %	0.984 in	25 mm	2.244 in	57 mm	52.5 mm	2.067 in	Through Hole	800 V	1.614 "	41 mm	11.6 mOhms	Long Life Low ESR	PC Pins	-40 °C	105 ░C	Metallized Polypropylene (PP)	Automotive DC Filtering DC Link	AEC-Q200
Panasonic Industrial Automation Sales EZP-V60606MTB	Radial - 4 Leads	60 µF	10 %	1.181 in	30 mm	1.634 "	41.5 mm	37.5 mm	1.476 in	Through Hole	600 V	2.244 "	57 mm	4.1 mOhms	Long Life Low ESR	PC Pins	-40 °C	105 ░C	Metallized Polypropylene (PP)	Automotive DC Filtering DC Link	AEC-Q200
Panasonic Industrial Automation Sales EZP-V60706MTB	Radial - 4 Leads	70 µF	10 %	1.496 "	38 mm	1.654 in	42 mm	37.5 mm	1.476 in	Through Hole	600 V			3.6 mOhms	Long Life Low ESR	PC Pins	-40 °C	105 ░C	Metallized Polypropylene (PP)	Automotive DC Filtering DC Link	AEC-Q200	53.5 mm	2.106 in
