UF9446 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

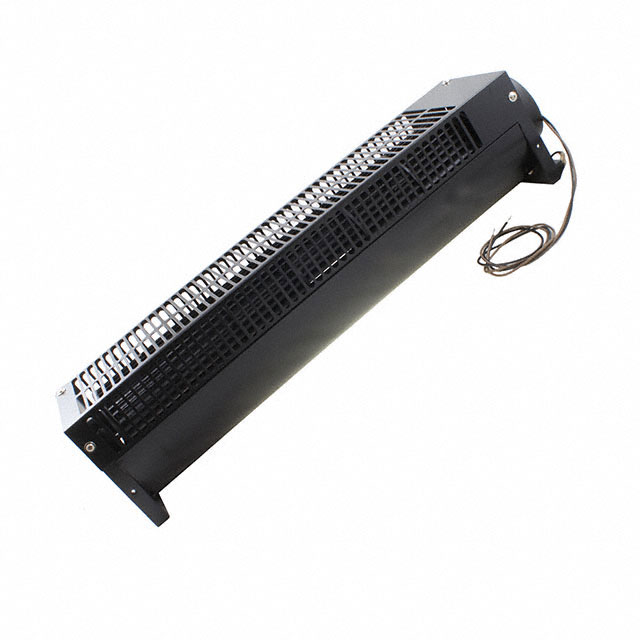

FAN BLWR CF 230VAC 570X150X130MM
| Part | Air Flow | Air Flow | Material - Blade | Material - Frame | Current Rating (Amps) | Fan Type | Voltage - Rated | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension | Weight [custom] | Weight [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Noise | Width [y] | RPM | Approval Agency | Power (Watts) | Termination | Static Pressure | Static Pressure | Bearing Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | 354 CFM | 9.91 m³/min | Plastic | Steel | 0.23 A | Blower Cross Flow | 230 VAC | 130 mm | 570 mm | Rectangular | 7.9 lbs | 3.6 kg | -40 C | 70 °C | 70 °C | -40 °C | 53 dB | 125 mm | 1550 RPM | CE TUV | 50 W | 2 Wire Leads | 0.2 in H2O | 49.8 Pa | Ball | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) |
