MH10 Series

Catalog

CONN SPLICE 10-12 AWG CRIMP 25PC

Part	Number of Wire Entries	Terminal Type	Color	Wire Gauge [Min]	Wire Gauge [Max]	Insulation	Termination	Material - Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall	Length - Overall	Contact Material	Thickness	Thickness	Features	Mounting Type	Contact Finish	Stud/Tab Size	Length - Termination [custom]	Length - Termination [custom]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Termination [x]	Length - Termination [x]	Width - Outer Edges	Width - Outer Edges
3M Electronic Specialty MH10BCX-BOTTLE	2	Butt Splice Individual Openings Inline	Yellow	10 AWG	12 AWG	Fully Insulated Heat Shrink	Crimp

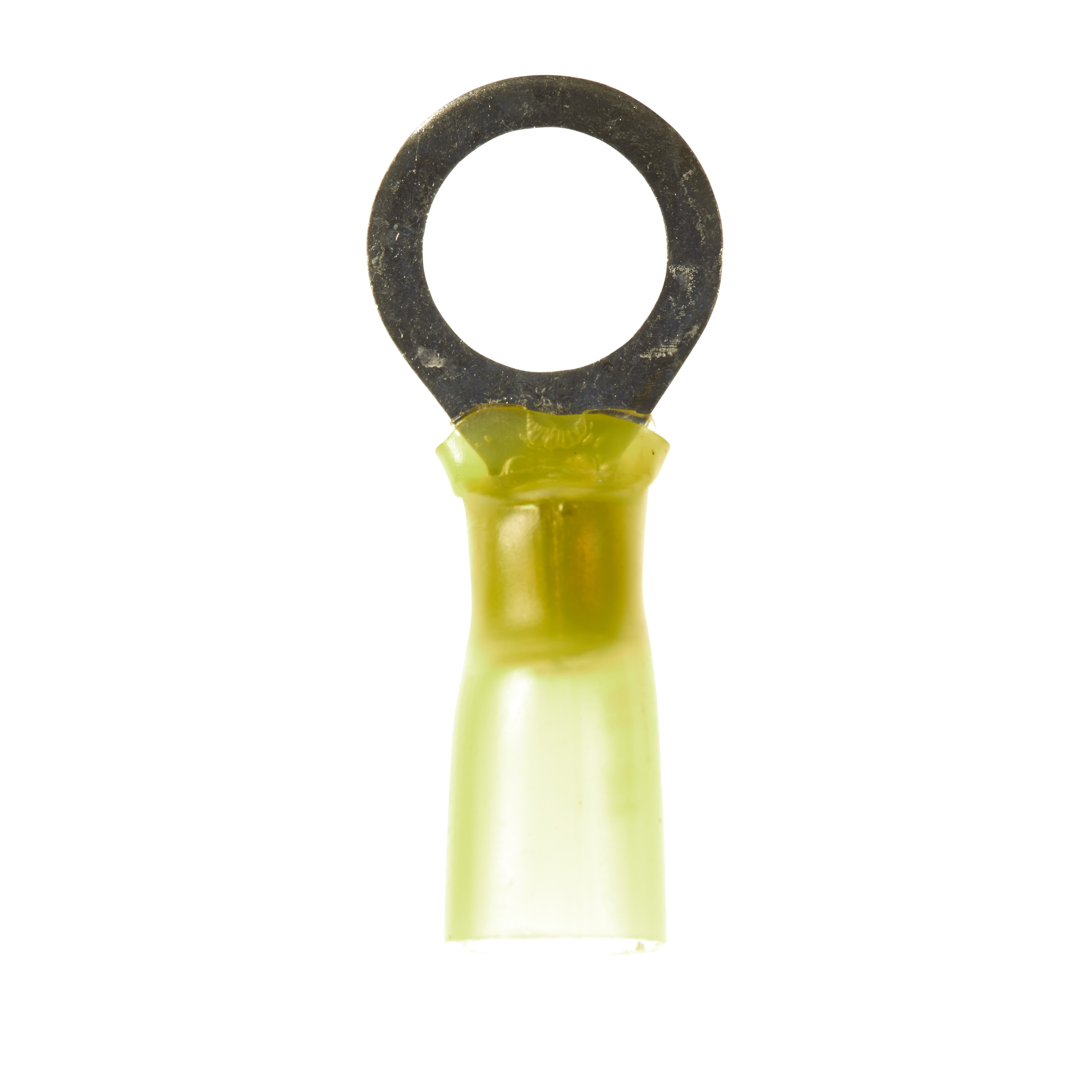

3M Electronic Specialty MH10-38RK		Circular	Yellow	10 AWG	12 AWG	Insulated with Heat Shrink	Crimp	Polyolefin	14.99 mm	0.59 in	1.2 in	30.48 mm	Copper ETP	0.04 in	1.02 mm	Brazed Seam	Free Hanging (In-Line)	Tin	0.375 Stud
3M Electronic Specialty MH10-8FLX-BOTTLE		Snap Spring	Yellow	10 AWG	12 AWG	Insulated with Heat Shrink	Crimp	Polyolefin			1 in	25.4 mm	Copper ETP			Brazed Seam	Free Hanging (In-Line)	Tin	8 Stud	0.64 in	16.26 mm	4.06 mm	0.16 "	0.32 in	8.13 mm
3M Electronic Specialty MH10-14FLX-BOTTLE		Snap Spring	Yellow	10 AWG	12 AWG	Insulated with Heat Shrink	Screw	Polyolefin			1.2 in	30.48 mm	Copper ETP			Brazed Seam	Free Hanging (In-Line)	Tin	0.25 Stud			7.62 mm	0.3 "			0.65 in	16.51 mm	0.43 in	10.92 mm
3M Electronic Specialty MH10-14RK		Circular	Yellow	10 AWG	12 AWG	Insulated with Heat Shrink	Crimp	Polyolefin	14.99 mm	0.59 in	1.2 in	30.48 mm	Copper ETP	0.04 in	1.02 mm	Brazed Seam	Free Hanging (In-Line)	Tin	0.25 Stud
3M Electronic Specialty MH10-8FLK		Snap Spring	Yellow	10 AWG	12 AWG	Insulated with Heat Shrink	Crimp	Polyolefin			1 in	25.4 mm	Copper ETP			Brazed Seam	Free Hanging (In-Line)	Tin	8 Stud	0.64 in	16.26 mm	4.06 mm	0.16 "	0.32 in	8.13 mm
