US381 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

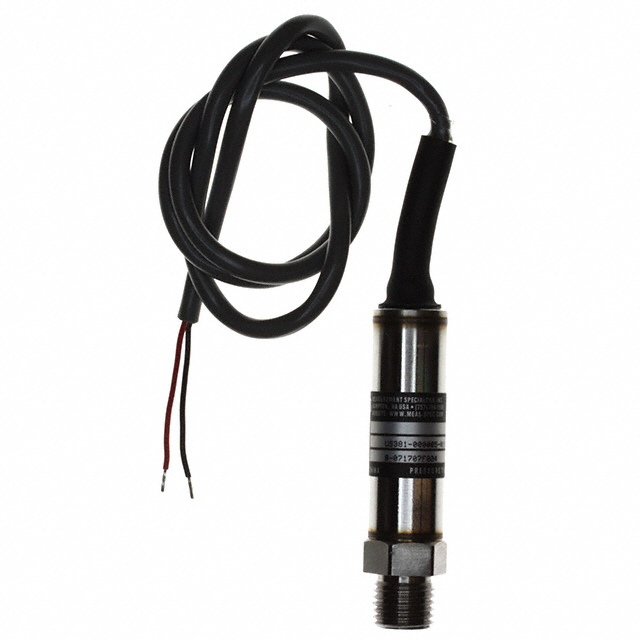

SENSOR 15PSIA 1/4NPT 4-20MA 2'
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Pressure | Operating Pressure | Termination Style | Port Style | Accuracy | Maximum Pressure | Maximum Pressure | Output Type | Port Size | Port Size | Port Size | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Output [Min] | Output [Max] | Features | Maximum Pressure [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 9 V | 30 VDC | 15 PSI | 103.42 kPa | Cable | Threaded | 0.25 % | 310.26 kPa | 45 PSI | Analog Current | Male NPT | 0.25 " | 0.25 in | Cylinder | -40 C | 105 ░C | Industrial Automation | 4 mA | 20 mA | Amplified Output Temperature Compensated | |
 TE Connectivity AMP Connectors | 2.5 V | 14 V | 30 PSI | 206.84 kPa | Cable | Threaded | 0.25 % | 620.53 kPa | Analog Current | Male NPT | 0.25 " | 0.25 in | Cylinder | -40 C | 105 ░C | 4 mA | 20 mA | Amplified Output Temperature Compensated | 90 PSI |
