6.6SM8Z Series
Manufacturer: Diotec Semiconductor
Beta
⌘K

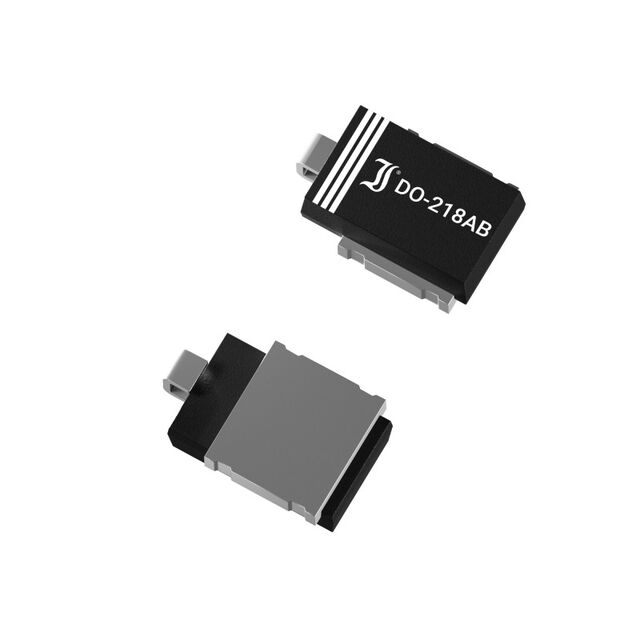

ESD PROTECTION DIODES / TVS DIODES TVS, DO-218AB, 175C, 6600W, UNIDIR, AEC-Q101
| Part | Unidirectional Channels [custom] | Qualification | Mounting Type | Supplier Device Package | Package / Case | Grade | Current - Peak Pulse (10/1000µs) | Operating Temperature [Min] | Operating Temperature [Max] | Power Line Protection | Voltage - Reverse Standoff (Typ) | Power - Peak Pulse | Power - Peak Pulse | Voltage - Clamping (Max) @ Ipp [Max] | Type | Voltage - Breakdown (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Diotec Semiconductor | 1 | AEC-Q101 | Surface Mount | DO-218AB | DO-218AB | Automotive | 254 A | -50 °C | 175 ░C | 16 V | 6600 W | 6.6 kW | 26 V | Zener | ||
Diotec Semiconductor | 1 | AEC-Q101 | Surface Mount | DO-218AB | DO-218AB | Automotive | 145 A | -50 °C | 175 ░C | 28 V | 6600 W | 6.6 kW | 45.4 V | Zener | 31.1 V | |
 Diotec Semiconductor | 1 | AEC-Q101 | Surface Mount | DO-218AB | DO-218AB | Automotive | 363 A | -50 °C | 175 ░C | 11 V | 6600 W | 6.6 kW | 18.2 V | Zener | 12.2 V |
