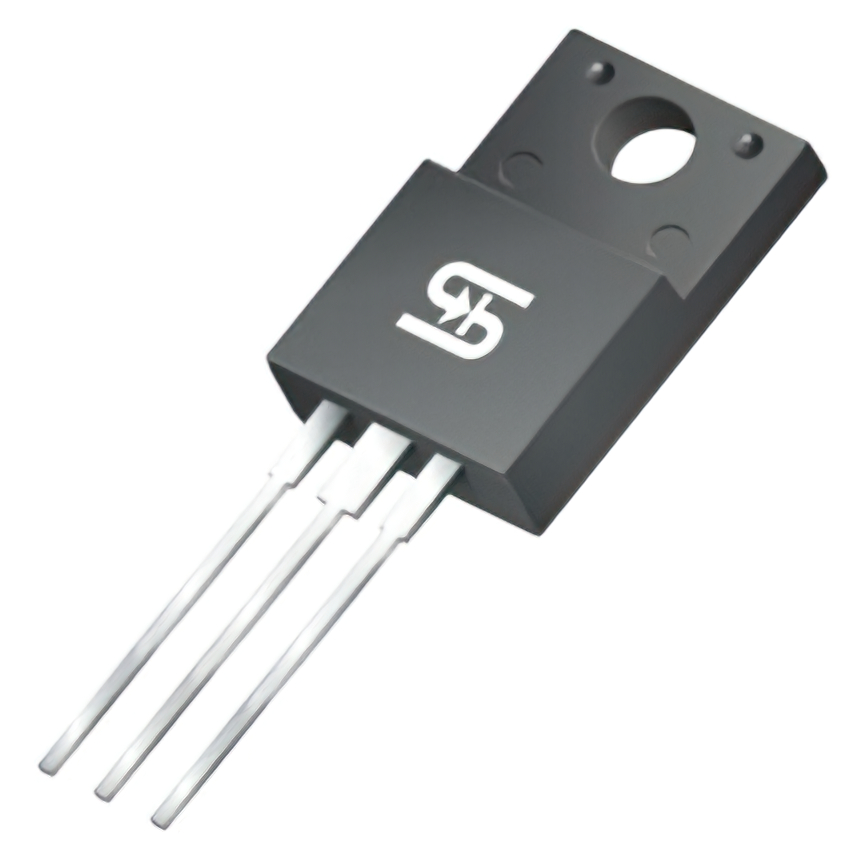

TSF Series
Manufacturer: Taiwan Semiconductor Corporation
Beta
⌘K
SCHOTTKY DIODES & RECTIFIERS 10A, 100V, TRENCH SCHOTTKY
| Part | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Supplier Device Package | Package / Case | Current - Reverse Leakage @ Vr | Speed | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Mounting Type | Technology | Voltage - DC Reverse (Vr) (Max) [Max] | Diode Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taiwan Semiconductor Corporation | 5 A | 730 mV | ITO-220AB | TO-220-3 Full Pack Isolated Tab | 50 µA | 200 mA 500 ns | -55 °C | 150 °C | Through Hole | Schottky | 100 V | 1 Pair Common Cathode |
 Taiwan Semiconductor Corporation | 20 A | 910 mV | ITO-220AB | TO-220-3 Full Pack Isolated Tab | 50 µA | 200 mA 500 ns | -55 °C | 150 °C | Through Hole | Schottky | 120 V | 1 Pair Common Cathode |
