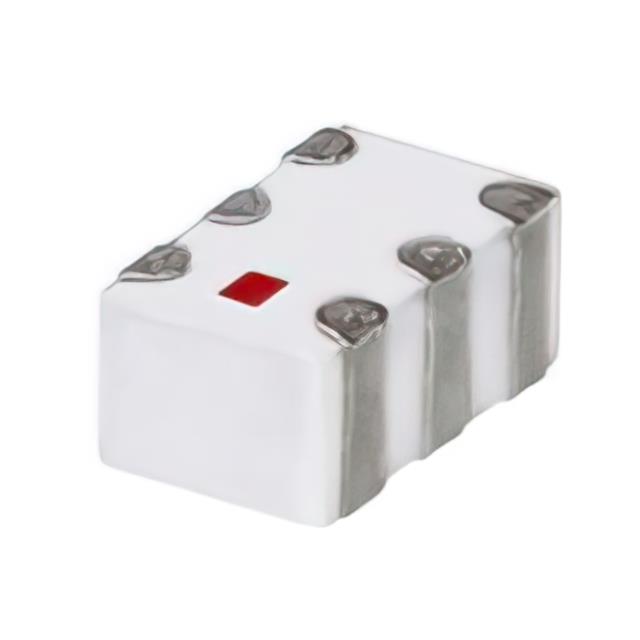

HFCW Series
Manufacturer: Mini-Circuits
Beta
⌘K
SIGNAL CONDITIONING LTCC HIGH PASS FILTER, 9200 - 18000 MHZ
| Part | Package / Case | Package / Case | Height (Max) [Max] | Height (Max) [Max] [z] | Frequency | Bandwidth | Mounting Type | Filter Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mini-Circuits | 6 PC Pad | 0603 (1608 Metric) | 0.73 mm | 0.029 in | 8.4 GHz | 8.8 GHz | Surface Mount | High Pass | 0.031 in | 1.6 mm | 0.8 mm | 0.063 " | 1.6 dB |
