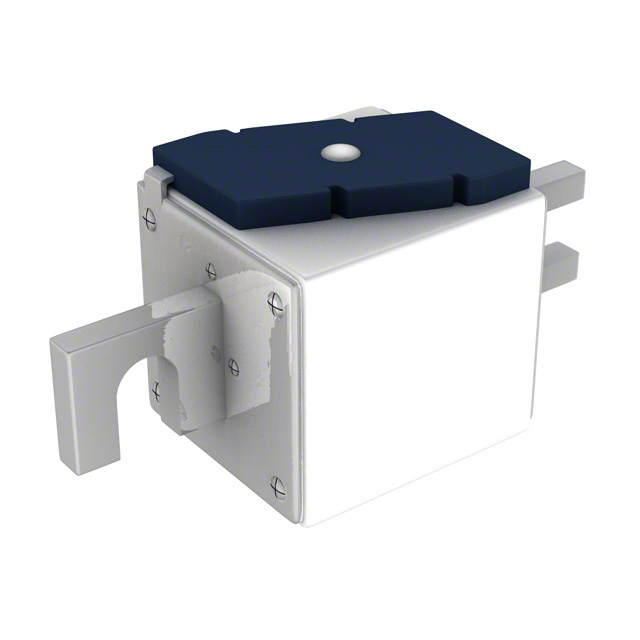

170M Type K Series
Specialty Fuses 315A 1250V 2KN/110 AR CU
Manufacturer: Eaton - Electronics Division
Catalog
Specialty Fuses 315A 1250V 2KN/110 AR CU
Beta
⌘K
Specialty Fuses 315A 1250V 2KN/110 AR CU
Specialty Fuses 315A 1250V 2KN/110 AR CU
Specialty Fuses 315A 1250V 2KN/110 AR CU
| Part | Voltage Rating - AC | Applications | Approval Agency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Breaking Capacity @ Rated Voltage | Package / Case | Mounting Type | Current Rating (Amps) | Melting I²t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 1.3 kVAC | Electrical Industrial | CSA UR | 2.992 in | 3.622 in | 92 mm | 3.189 in | 81 mm | 76 mm | 100 kA | Rectangular Blade | Bolt Mount | 350 A | |
 Eaton - Electronics Division | 1.3 kVAC | Electrical Industrial | CSA UR | 2.402 " | 3.032 " | 77 mm | 3.15 " | 80 mm | 61 mm | 100 kA | Rectangular Blade | Bolt Mount | 315 A | 13000 |
